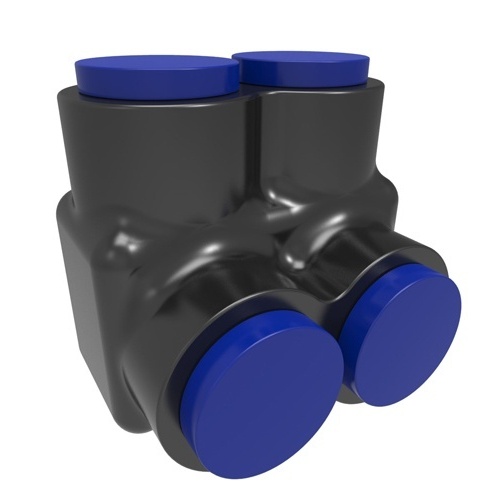

Ilsco PBTS-2-250-F Multi-Tap Connector - Aluminum, 250-6 AWG, Stranded, 600 V, 290 Amp, Black
Normally In Stock
Code: 589683
Ilsco PBTS-2-250-F - Nimbus4Flex Insulated Flexible Aluminum Multi-Tap Connector, Conductor Range 250-6, Flex 4/0-6 H,I,K 2/0-6 M 3/0-6 DLO, 2 Ports, Single Sided Entry, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$140.54
Sale Price
$108.11
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco PBTS-2-250-F - The Nimbus4Flex Insulated Flexible Aluminum Multi-Tap Connector is a UL and CSA listed product with a voltage rating of 600V. It features two ports, single-sided entry, and a tin-plated finish. With a temperature rating of 90°C, this connector is suitable for a conductor range of 250-6 CU Stranded and 250-6 AL Stranded. It offers reliable mechanical connection with De-Ox® material and a wire binding torque of 335. Can handle up to 290 amps for CU and 230 amps for AL. Ideal for use in cold temperatures down to -45°C.
Specifications
Color
Black
Manufacturer
Ilsco
Material
Aluminum
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
600 V
Number of Connectors
2
Terminal for Wire Gauge
250-6 AWG
Component
Multi-Tap Connector
Insulation Material
Plastisol
Features
Broad wire range: 750kcmil-14
UL Listed and CSA Certified for 600 volts, 90˚ C
Dual rated
Cold temperature rated to -45˚ C
High dielectric strength plastisol
Black cover
Removable plugs
Prefilled with De-ox®
