Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 588979

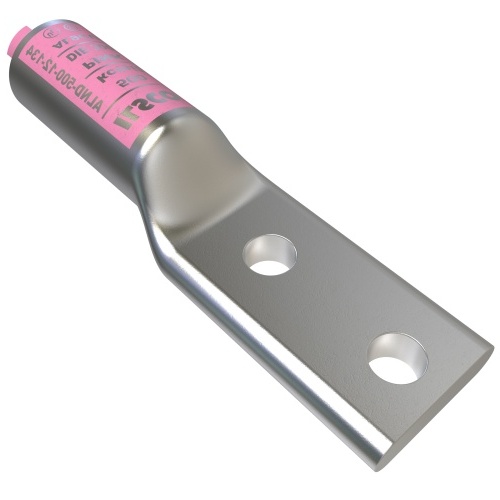

Ilsco ALND-500-12-134 Compression Lug - Aluminum, 500 MCM, Stranded, 35 kV
Normally In Stock
Ilsco ALND-500-12-134 - Surecrimp Aluminum Compression Lug, Conductor Size 500, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$153.09
Sale Price
$117.76
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco ALND-500-12-134 - Surecrimp Aluminum Compression Lug with a conductor size of 500 kcmil, 2 holes, 1/2in bolt size, and long barrel. Tin plated with UL, CSA, NEMA Code S-588-3. Suitable for 35 kV voltage applications with a temperature rating of 90°C. Dual rated for aluminum and copper conductors. Includes DE-OX® for improved performance.
Specifications
Color
Silver
Component
Compression Lug
Manufacturer
Ilsco
Material
Aluminum
Terminal Stud Size Opening
1/2"
Terminal for Wire Gauge
500 MCM
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Features
Manufactured from high strength aluminum alloy
Electro-Tin plated
Chamfered entry
Color coded end cap
Ink marked
Two bolt hole pattern
Pre-filled with DE-OX® oxide inhibiting compound
Range taking
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Dual rated AL9CU to 90˚ C
Code: 588979
Ilsco ALND-500-12-134 Compression Lug - Aluminum, 500 MCM, Stranded, 35 kV
$153.09
Sale Price
$117.76
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
