Code: 588938

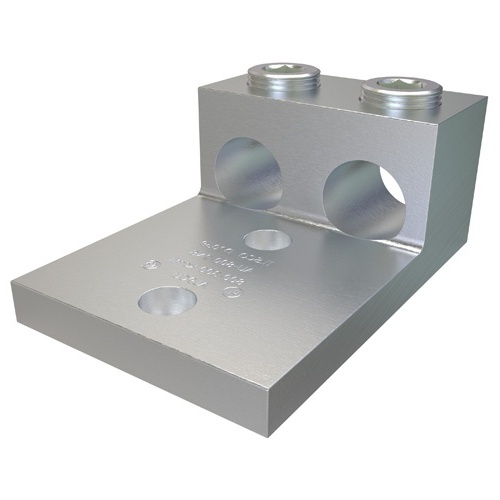

Ilsco AU-800-2NS Mechanical Lug - Aluminum, 800-300 MCM, Stranded, 35 kV
Normally In Stock
Ilsco AU-800-2NS - Aluminum Mechanical Lug, Conductor Range 800-300, 2 Ports, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$144.95
Sale Price
$111.50
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco AU-800-2NS - The Aluminum Mechanical Lug is a dual-rated connector with a conductor range of 800-300 kcmil for aluminum and copper stranded conductors. It features 2 ports, 2 holes, and a 1/2in bolt size. UL and CSA listed, with a temperature rating of 90°C and a voltage rating of 35 kV. Tin plated aluminum with a 1-3/4in hole spacing for secure connections.
Specifications
Color
Silver
Manufacturer
Ilsco
Material
Aluminum
Terminal Stud Size Opening
1/2"
Voltage Rating
35 Kv
Number of Connectors
2
Component
Mechanical Lug
Terminal for Wire Gauge
800-300 MCM
Features
Manufactured from high strength 6061-T6 aluminum alloy
Electro-tin plated
Chamfered wire entry
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Rated to 90˚ C
