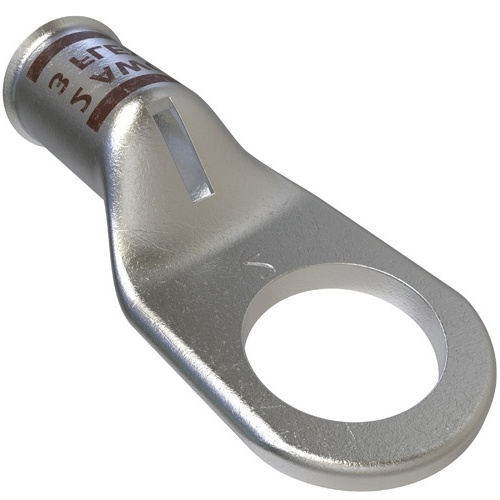

Ilsco CCL-2-12 Compression Lug - Copper, 2 AWG, Stranded, 35 kV
Normally In Stock
Code: 588885
Ilsco CCL-2-12 - Copper Compression Lug, Conductor Size 2, 1 Hole, 1/2in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$8.71
Sale Price
$6.70
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco CCL-2-12 - Ilsco's Copper Compression Lug is a reliable electrical connector for 2 AWG stranded copper conductors. This UL-listed product features a 1/2in bolt size, tin-plated finish, and a sight window for easy inspection. With a 35kV voltage rating and 90°C temperature rating, it ensures safe and secure connections.
Specifications
Color
Silver
Component
Compression Lug
Manufacturer
Ilsco
Terminal for Wire Gauge
2 AWG
Terminal Stud Size Opening
1/2"
Material
Copper
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Features
Electro-tin plated
Sight hole
Solid seamless tang
Electrolytic copper
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
For copper conductor only
Rated to 90˚ C
