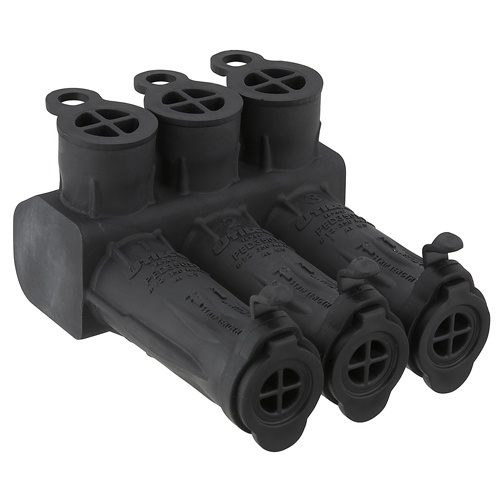

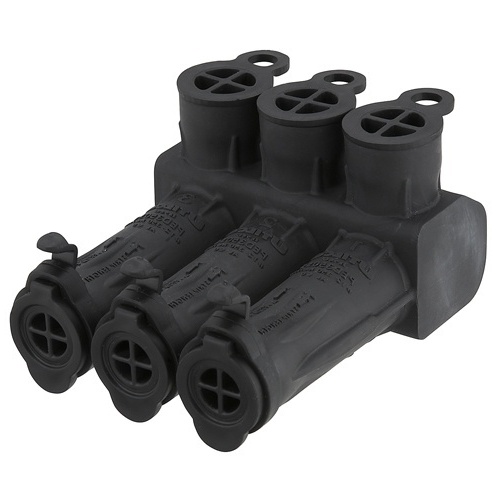

Ilsco PED3-350SS-DB Multi-Tap Connector - Aluminum, 350-12 AWG, Stranded, 600 V, Black
Normally In Stock
Code: 588797
Ilsco PED3-350SS-DB - SafetySub Insulated Multi-Tap Connector, Dual Rated, Direct Burial, Conductor Range 350-12, 3 Ports, UL, CSA
Condition: New
CALL FOR LEAD TIME$157.13
Sale Price
$120.87
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco PED3-350SS-DB - The SafetySub Insulated Multi-Tap Connector is a dual-rated, direct burial connector with 3 ports, suitable for a conductor range of 350-12. UL and CSA listed, with a temperature rating of 90°C and a voltage rating of 600V. Made of aluminum with a tin finish, featuring DE-OX® technology for added protection.
Specifications
Color
Black
Manufacturer
Ilsco
Material
Aluminum
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
600 V
Number of Connectors
3
Component
Multi-Tap Connector
Insulation Material
TPE (Thermoplastic Elastomer)
Terminal for Wire Gauge
350-12 AWG
Features
Manufactured from high strength aluminum alloy
Environmentally sealed design
Dual rated
Encapsulation meets or exceeds dielectric strength of 240 volts per mil (nominal thickness 125 mils)
Re-sealable and tethered wire ports
Pre-filled with DE-OX® oxide inhibiting compound
UL Listed and CSA Certified
Rated for 600 volts, 90˚ C
