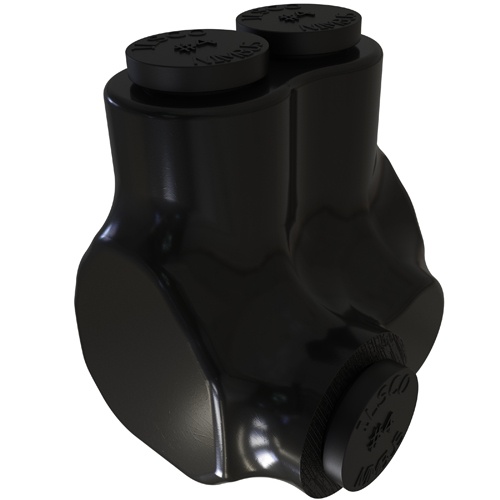

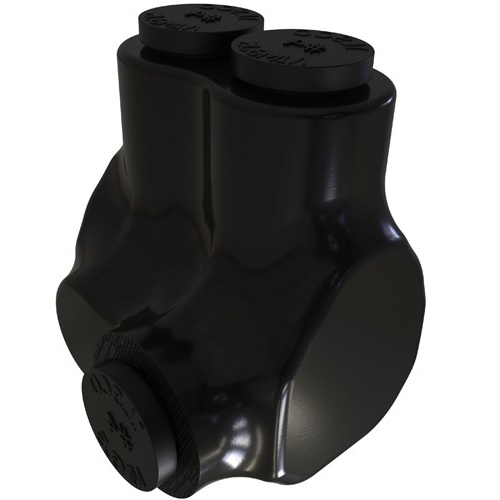

Ilsco PBTO-4 Splice - Aluminum, 4-14 AWG, Stranded, 600 V, Black
Normally In Stock
Code: 588732
Ilsco PBTO-4 - Nimbus Insulated Aluminum In-Line Splicer-Reducer Connector Offset, Conductor Range 4-14, 2 Ports, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$45.12
Sale Price
$34.71
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco PBTO-4 - The Nimbus Insulated Aluminum In-Line Splicer-Reducer Connector Offset is a UL and CSA listed connector with a conductor range of 4-14. Dual rated for use with aluminum and copper conductors, this connector has 2 ports, tin plated finish, and a temperature rating of 90°C. Suitable for 600V applications with steel wire binding hardware.
Specifications
Color
Black
Component
Splice
Manufacturer
Ilsco
Material
Aluminum
Terminal for Wire Gauge
4-14 AWG
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
600 V
Number of Connectors
2
Insulation Material
Plastisol
Features
Broad wire range: 750kcmil-14
UL Listed and CSA Certified for 600 volts, 90˚ C
Dual rated
Cold temperature rated to -45˚ C
High dielectric strength plastisol
Black cover
Removable plugs
Prefilled with De-ox®
