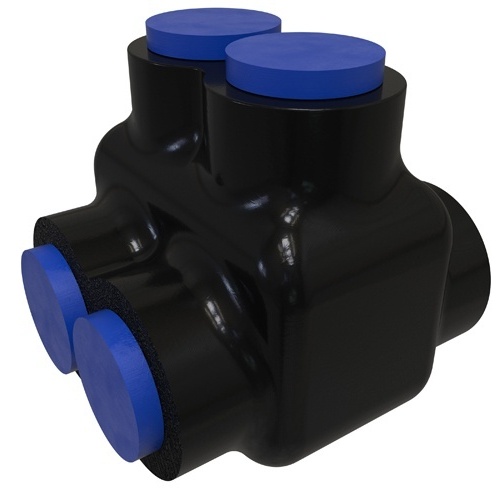

Ilsco PBTD-2-1/0-F Multi-Tap Connector - Aluminum, 1/0-14 AWG, Solid, 600 V, 170 Amp, Black
Normally In Stock
Code: 588726
Ilsco PBTD-2-1/0-F - Nimbus4Flex Insulated Flexible Aluminum Multi-Tap Connector, Conductor Range 1/0-14, Flex 1-14 H,I,K,DLO 2-14 M, 2 Ports, Dual Sided Entry, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$103.16
Sale Price
$79.35
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco PBTD-2-1/0-F - The Nimbus4Flex Insulated Flexible Aluminum Multi-Tap Connector is a UL and CSA listed connector with 2 ports, dual sided entry, and tin plated finish. Designed for conductor ranges 1/0-14, it has a voltage rating of 600V and amperage ratings of 170A for copper and 135A for aluminum. Temperature rated to 90°C, it is suitable for cold temperatures down to -45°C. Made of aluminum with copper conductors, it is suitable for a variety of applications. Dimensions include a maximum insulation OD of 12.9794mm and wire binding screw size of 3/8. No mounting hole necessary. Contains DE-OX® material. Product specifications include UL Control Number 453G, NEMA Code S-588-4, and CSA File Number LR-29601. The connector is suitable for use with 1-14 H,I,K,DLO 2-14 M Flex conductors.peq
Specifications
Color
Black
Manufacturer
Ilsco
Material
Aluminum
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
600 V
Number of Connectors
2
Component
Multi-Tap Connector
Insulation Material
Plastisol
Terminal for Wire Gauge
1/0-14 AWG
Features
Broad wire range: 750kcmil-14
UL Listed and CSA Certified for 600 volts, 90˚ C
Dual rated
Cold temperature rated to -45˚ C
High dielectric strength plastisol
Black cover
Removable plugs
Prefilled with De-ox®
