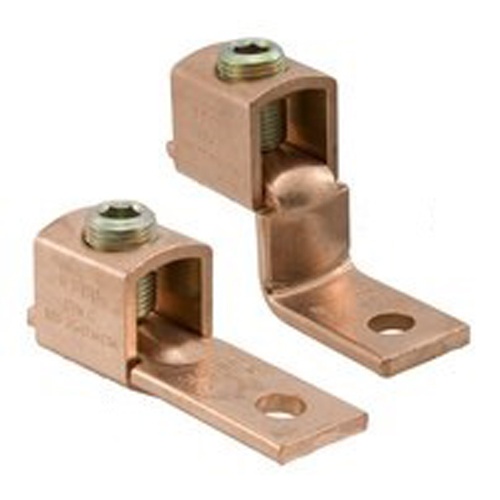

Ilsco SLU-650 Mechanical Lug - Copper, 1000-600 MCM, Stranded, 35 kV
Normally In Stock
Code: 587638
Ilsco SLU-650 - Copper Mechanical Lug Offset, Conductor Range 1000-600, 1 Port, 1 Hole, 1/2in Bolt Size, UL, CSA
Condition: New
CALL FOR LEAD TIME$152.78
Sale Price
$117.52
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco SLU-650 - Copper Mechanical Lug Offset with 1 port, 1 hole, and 1/2in bolt size. UL and CSA approved, rated for 35 kV and 90°C. Suitable for 1000-600 kcmil copper stranded conductors. Features internal hex drive, steel hardware, and zinc clear finish. Designed for secure and reliable electrical connections.
Specifications
Manufacturer
Ilsco
Terminal Stud Size Opening
1/2"
Material
Copper
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Color
Copper
Voltage Rating
35 Kv
Number of Connectors
1
Component
Mechanical Lug
Terminal for Wire Gauge
1000-600 MCM
Features
Manufactured from electrolytic copper tubing and strip stock
Compact design
Range taking
Re-usable
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
V-bottom collar
SLU-35DB and SLU-70DB are UL 467 Listed and suitable for direct burial
Rated to 90˚ C
