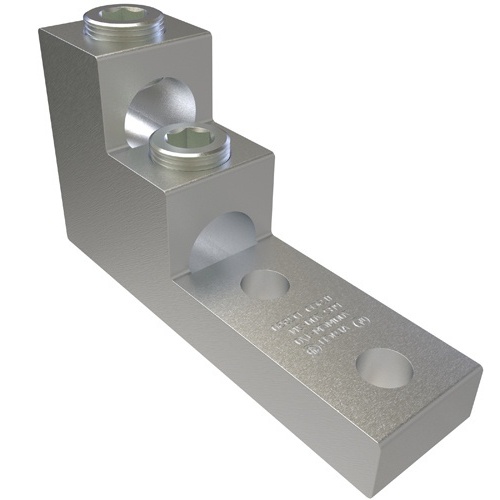

Ilsco PB2-750-2N Panelboard Lug - Aluminum, 750-1/0 AWG, Stranded, 35 kV
Normally In Stock
Code: 587626
Ilsco PB2-750-2N - Aluminum Panelboard Lug, Dual Rated, Conductor Range 750-1/0, 2 Ports, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$152.19
Sale Price
$117.07
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco PB2-750-2N - Aluminum Panelboard Lug, Dual Rated for 750-1/0 conductor range, 2 ports with 2 holes, 1/2in bolt size. UL/CSA/NEMA listed, tin plated, suitable for 35kV voltage. Mechanical connection, CU/AL stranded conductors. Mounting hole spacing 1.75in, with internal hex drive. Tang dimensions 3.125x1.563x0.75in. Wire binding torque 500 in-lbs.
Specifications
Color
Silver
Manufacturer
Ilsco
Material
Aluminum
Terminal Stud Size Opening
1/2"
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Component
Panelboard Lug
Number of Connectors
2
Terminal for Wire Gauge
750-1/0 AWG
Features
Manufactured from high strength 6061-T6 aluminum alloy
Electro-tin plated
Chamfered wire entry
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Stacked design
Rated to 90˚ C
