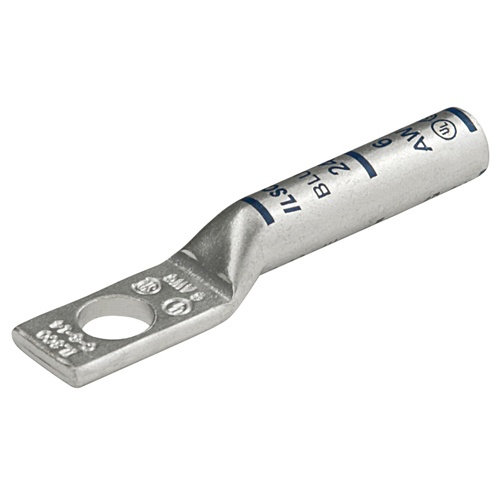

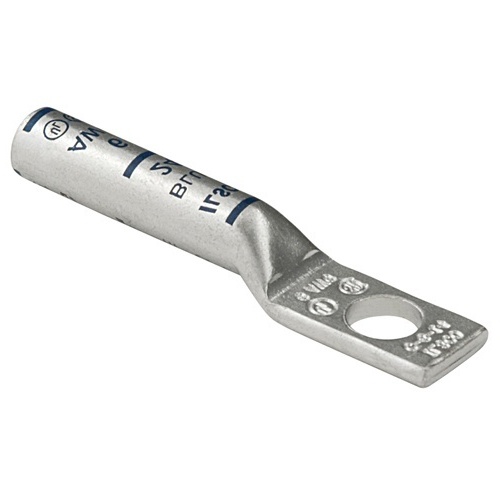

Ilsco CLNS-4-14 Compression Lug - Copper, 4 AWG, Stranded, 35 kV, 1/4"
Normally In Stock
Code: 586060
Ilsco CLNS-4-14 - Surecrimp Copper Compression Lug, Conductor Size 4, 1 Hole, 1/4in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$7.51
Sale Price
$5.78
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco CLNS-4-14 - Surecrimp Copper Compression Lug, designed for 4 Str copper conductors with 1/4in bolt size. Tin plated for durability, UL and CSA listed. Suitable for 35 kV applications, DE-OX® included for direct burial. Features long barrel with ink marking, 180° connecting angle. Barrel length of 1.125in, 0.343in outside diameter. Ilscos Die Index Number: I-29.
Specifications
Bolt Size
1/4"
Component
Compression Lug
Manufacturer
Ilsco
Material
Copper
Wire Gauge
4 AWG
Connector Finish
Tin
Number of Mounting Holes
2
Conductor Type
Flex
Features
Manufactured from high strength seamless copper tubing
Electro-Tin plated
Chamfered entry
Color coded
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
UL Listed and CSA Certified with ILSCO and major competitor’s compression tools
UL467 Listed 500 kcmil - 10 AWG , #10 - #2 SOL
For direct bury 500 kcmil - 10 grounding and bonding
Rated to 90˚ C
