Ilsco CLNS-300-12 Compression Lug - Copper, 300 MCM, Flex, 35 kV
Normally In Stock
Code: 585637

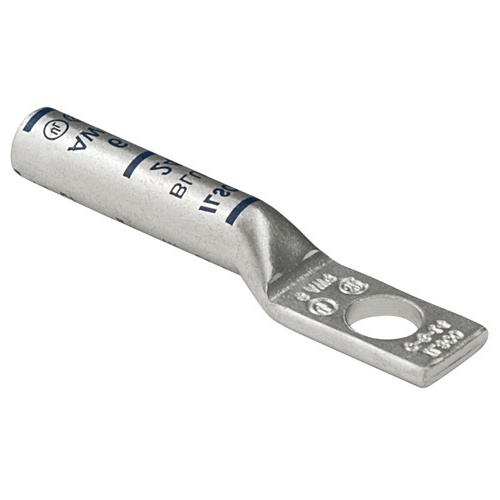

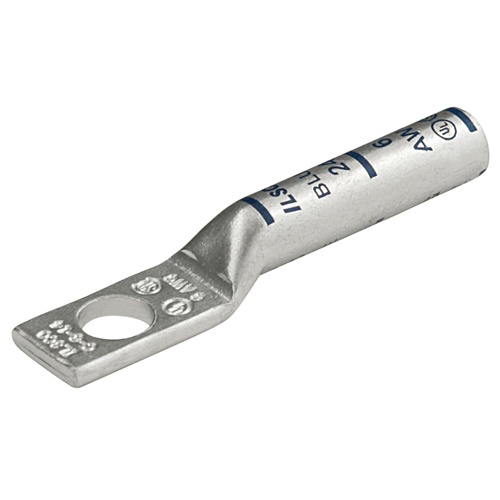

Ilsco CLNS-300-12 - Surecrimp Copper Compression Lug, Conductor Size 300, 1 Hole, 1/2in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$25.43
Sale Price
$19.56
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco CLNS-300-12 - Surecrimp Copper Compression Lug S-588-3 is a long barrel lug with 1-hole design for 300kcmil CU stranded conductors. Tin plated for durability, UL and CSA listed with 35kV voltage rating. Suitable for direct burial, featuring DE-OX® for enhanced conductivity. Mounting hole diameter 0.562in, tang thickness 0.152in, and 180° connecting angle.
Specifications
Component
Compression Lug
Manufacturer
Ilsco
Material
Copper
Connector Finish
Tin
Conductor Type
Stranded
Number of Mounting Holes
2
Bolt Size
1/2"
Wire Gauge
300 MCM
Features
Manufactured from high strength seamless copper tubing
Electro-Tin plated
Chamfered entry
Color coded
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
UL Listed and CSA Certified with ILSCO and major competitor’s compression tools
UL467 Listed 500 kcmil - 10 AWG , #10 - #2 SOL
For direct bury 500 kcmil - 10 grounding and bonding
Rated to 90˚ C
