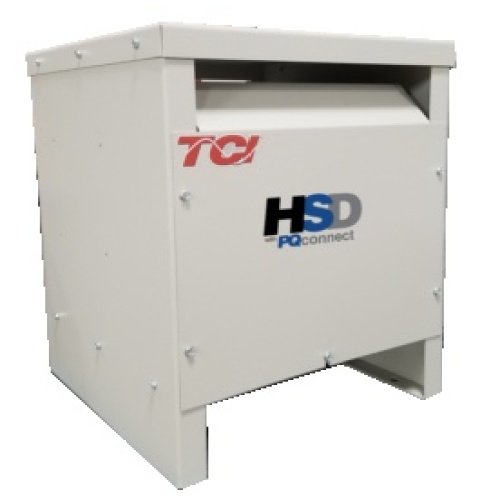

TCI HSD0450CW31010 - HSD, 450 HP, 600V, 3ph, 60 Hz, 412 Amp, UL Type 3R
Normally In Stock
Code: 585231
TCI HSD0450CW31010 - HSD, 450 HP, 600/3/60, UL Type 3R, Contactor Version, PQconnect, 412 Amp
Condition: New
Usually Ships within 2-4 weeks$32022.54
Sale Price
$26685.45
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TCI HSD0450CW31010 - HSD Harmonic Shield with PQconnect offers industry leading 5% THID Total Harmonic Current Distortion (THID) performance even at light loads and under the harshest of environments.
Specifications
VFD Filter Horsepower
450 HP
VFD Filter Voltage
600 Volt
VFD Filter Line
(HSD) Harmonic Filter
VFD Filter Protected Side
Line Side (In)
Manufacturer
TCI
VFD Filter Voltage Phase
Three Phase
VFD Filter Frequency
60 Hz
VFD Filter Enclosure
UL Type 3R
Filter Type
Harmonic
Features
Limits total harmonic current distortion down to 5% over the widestg load range in the industry
Ensures IEEE-519 2022 compliance

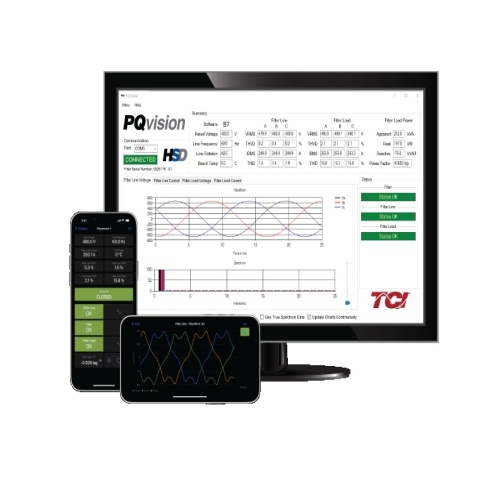

Intelligent control and monitoring available with PQconnect
Communications and data analytics available via Modbus RTU and EtherNet/IP
Generator compatibility
High quality components
Made in the USA
