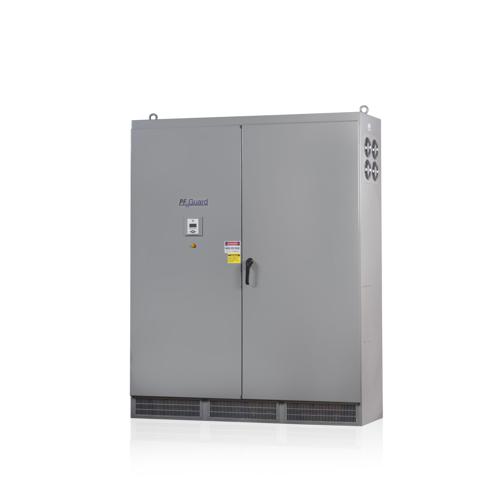

TCI PFCA0500AW1A140C PF Guard Capacitor Bank - 500 kVAR, 480 VAC, UL Type 1, Full kVAR Steps
Normally In Stock
Code: 585100
TCI PFCA0500AW1A140C - 480 V, UL Type 1, Automatic, Circuit Breaker, 500 kVAR, 5 x 100 kVAR Steps (Full), No Step Fuse Monitor
Condition: New
Usually Ships Within 2-4 Weeks$94439.52
Sale Price
$78699.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

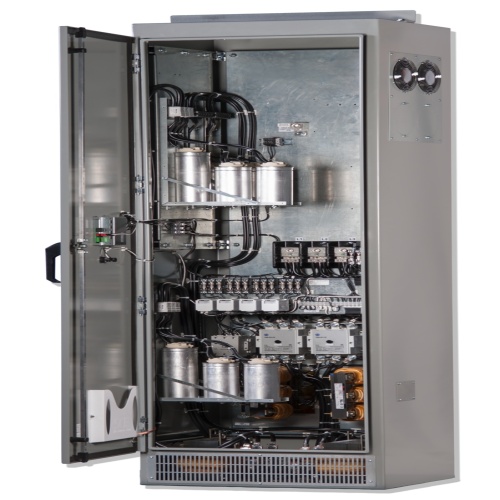

TCI PFCA0500AW1A140C - The PFGuard is an automatic capacitor bank, UL listed per 508A , Available in Type 1, Type 12, Optional Step Fuse monitor, Input protection options include, circuit breaker, fuse block, and fused disconnect switch, Input controller with up to 12 step outputs, Detuned cap bank allows for harmonic protection to the caps and hassle free operation, Available half and full step operation for finer PF control, 100kA SCCR with fusing. Built-in, detuned, anti-resonance reactor for extra layer of protection from harmonics
and equipment failure. Typical Applications: Large Industrial, Heavy Manufacturing, Wood Processing, Steel/Paper Mills, Tire/Rubber, Refineries, Mining
Specifications
Manufacturer
TCI
Component
Capacitor Bank
Reactive Power
500 Kvar
Voltage Rating
480 VAC
Enclosure
UL Type 1
Series
PF Guard
Number of Steps
5 Steps
kVAR Steps
100 Kvar Steps
Input Protection
Circuit Breaker
Features
The PF Guard offers an automatic switching design, providing an optimized solution for your application.
A detuned, antiresonance reactor is built into the unit for an extra layer of protection from harmonics and to prevent equipment failure, reduce costs and increase the life of the system.
Automatic switching design
Built-in, detuned, anti-resonance reactor for extra layer of protection from harmonics and equipment failure
cULus Listed
Half-Step switching to allow for finer PF control
