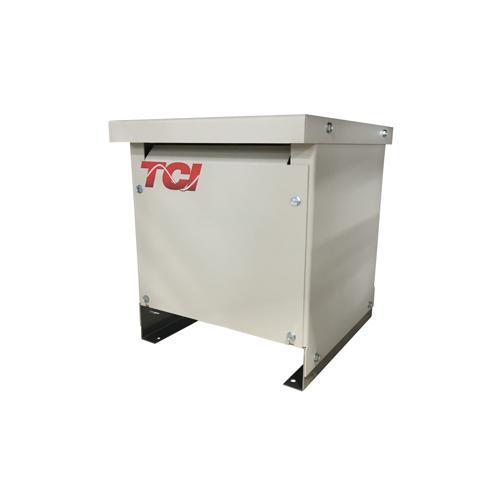

TCI KDRULB44LE3R - KDR, 575V, 24A, 20HP, Three Phase, UL Type 3R, 50/60 Hz
Normally In Stock
Code: 584725
TCI KDRULB44LE3R - KDR, 575V, 24A, 20HP, 3 Phase, Type 3R, Input Line Inductor, 22 Motor Amp, 71.2 Watts Loss, 0.03 Impedance - 11.5" x 10" x 12" (HxWxD)
Condition: New
Usually Ships within 2-4 weeks*NON-CANCELLABLE, NON-RETURNABLE*
$932.15
Sale Price
$776.79
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TCI KDRULB44LE3R - KDR line reactors are electrical components that help to protect 6-pulse rectifiers and power conversion devices such as variable frequency drives (VFDs). When used in conjunction with a VFD, a KDR line reactor can help reduce harmonics and protect the drive from harmful voltage spikes. KDR line reactors are recommended on the input of each VFD in multiple drive applications.
Specifications
VFD Filter Horsepower
20 HP
VFD Filter Impedance
3%
VFD Filter Line
(KDR) Reactor
VFD Filter Voltage
575 Volt
VFD Filter Protected Side
Line Side (In)
Manufacturer
TCI
VFD Filter Voltage Phase
Three Phase
VFD Filter Motor Amps
22 Motor Amp
VFD Filter Watts Loss
71.2 Watts
VFD Filter Enclosure
UL Type 3R
Features
Impedance Protection: Low “Z” and High “Z”
System Voltage: 208/240 VAC, 480 VAC, 575/600 VAC, 690 VAC
Ambient Temperature: 50° C (122° F) – Open
40° C (104° F) – Enclosed
Altitude (Maximum): 2,000 meters (6,000 feet) – Derating necessary above 2,000 meters
Fundamental Frequency: 50/60 Hz
Short Term Overload Rating: Tolerate 200% rated I for a maximum of 3 minutes
Agency Approvals: cULus Listed, CE Marked
Inductance Characteristics: Minimum 95% L at 110% Load
Minimum 80% L at 150% Load
Input and Output: Available for either the line or load side of a VFD
