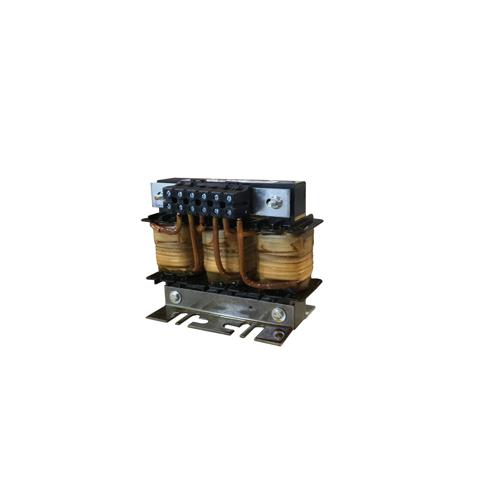

TCI KDRULF2P - KDR, 480V, 80A, 60HP, Three Phase, Open, 50/60 Hz
Normally In Stock
Code: 584616
TCI KDRULF2P - KDR, 480V, 80A, 60HP, 3 Phase, Open, Output Line Inductor, 77 Motor Amp, 169 Watts Loss, 0.015 Impedance - 7" x 9" x 6" (HxWxD)
Condition: New
Usually Ships within 2-4 weeks*NON-CANCELLABLE, NON-RETURNABLE*
$743.58
Sale Price
$619.65
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TCI KDRULF2P - KDR line reactors are electrical components that help to protect 6-pulse rectifiers and power conversion devices such as variable frequency drives (VFDs). When used in conjunction with a VFD, a KDR line reactor can help reduce harmonics and protect the drive from harmful voltage spikes. KDR line reactors are recommended on the input of each VFD in multiple drive applications.
Specifications
VFD Filter Voltage
480 Volt
VFD Filter Enclosure
Open
VFD Filter Horsepower
60 HP
VFD Filter Line
(KDR) Reactor
VFD Filter Protected Side
Line Side (In)
Manufacturer
TCI
VFD Filter Voltage Phase
Three Phase
VFD Filter Impedance
1.5%
VFD Filter Motor Amps
77 Motor Amp
VFD Filter Watts Loss
169 Watts
Features
Impedance Protection: Low “Z” and High “Z”
System Voltage: 208/240 VAC, 480 VAC, 575/600 VAC, 690 VAC
Ambient Temperature: 50° C (122° F) – Open
40° C (104° F) – Enclosed
Altitude (Maximum): 2,000 meters (6,000 feet) – Derating necessary above 2,000 meters
Fundamental Frequency: 50/60 Hz
Short Term Overload Rating: Tolerate 200% rated I for a maximum of 3 minutes
Agency Approvals: cULus Listed, CE Marked
Inductance Characteristics: Minimum 95% L at 110% Load
Minimum 80% L at 150% Load
Input and Output: Available for either the line or load side of a VFD
