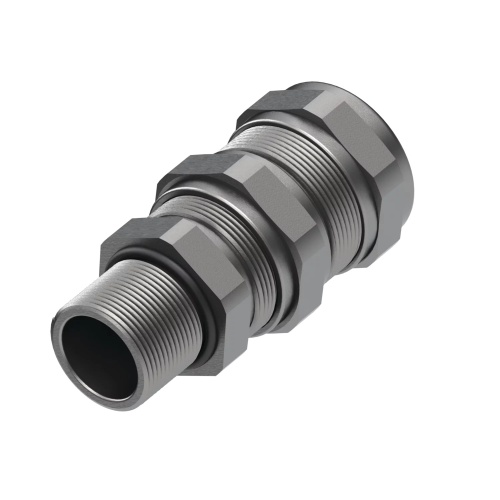

nVent Hoffman KBAU01MBNCWCLE Hazloc Cable Glands for Non-Armored Cable
Normally In Stock
Code: 58456
nVent Hoffman KBAU01MBNCWCLE Hazloc Cable Glands for Non-Armored Cable
Condition: New
Usually ships Same Day or Next Dayhttps://hoffman.nvent.com/en/hoffman/hazardous-location-enclosures/3074457345616941698
$66.22
Sale Price
$57.16
44013
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman KBAU01MBNCWCLE Hazloc Cable Glands for Non-Armored Cable
Specifications
Component
Cable Gland
Sub Component
Hazardous Location Cable Gland
Cable Gland Composition
Nickel-Plated Brass
Hazardous Location Certification
ATEX Directive 94-9-EC Zone 1
Hazardous Location Certification
ATEX Directive 94-9-EC Zone 2
Hazardous Location Certification
ATEX Directive 94-9-EC Zone 21
Hazardous Location Certification
ATEX Directive 94-9-EC Zone 22
Manufacturer
Hoffman
Features
All NPT thread cable glands are packaged as kits. Each kit includes a locknut and earthtag (except for NPT 3/8-in. cable glands which do not include locknut and earthtag)
The swivel retainer and grounding cone are adhered to the gland body by the o-rings to prevent any loose parts, to remove, simply pull these components slightly to detach
All metric thread cable glands are packaged as kits and includes a chloroprene washer, locknut and earthtag
Available in Metric (M) and NPT (N) thread type
Allow for double sealing of cable and jacket with upper and lower seals
Suitable for SWA (steel wire armored), AWA (aluminum wire armored), SWB (steel wire braid), STA (steel tape armored), & shielded cable in flameproof (ex d), increased safety (ex e) and dust (ex tb) applications
Operating temperature from -40 C to 100 C with chloroprene seal and -60 C to 130 C with silicon seal
