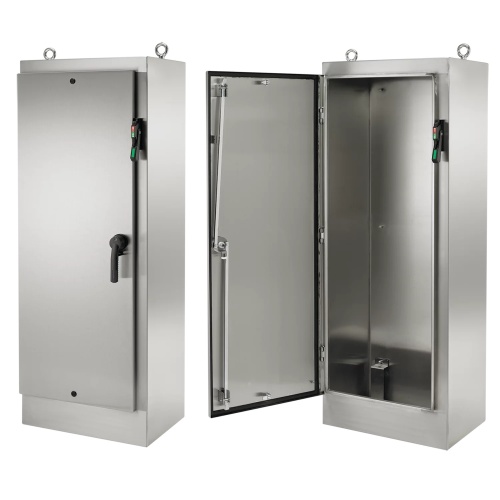

nVent Hoffman A72HXS2718SSLPQT Single-Door Free-Stand Disconnect, Type 4X
Normally In Stock
Code: 58356
nVent Hoffman A72HXS2718SSLPQT 72"x26.5"x18" Type 3R,Type 4,Type 4X,Type 12 Outdoor-Indoor 1 Door Wall Mount Preferred Cutout Disconnect (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$9687.72
Sale Price
$8073.10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A72HXS2718SSLPQT Single-Door Free-Stand Disconnect, Type 4X This single door stainless steel enclosure with quarter-turn latches is designed to house electronic controls and components. It provides protection from non-corrosive or mildly corrosive elements in both indoor and outdoor environments. Typical applications are in the pharmaceutical, food and beverage, packaging, water, petroleum and chemical processing industries.
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Latch Type
Quarter Turn
Enclosure Interior Color
White
Enclosure Lock Type
Padlocking
Enclosure Depth
18"
Enclosure Composition
Stainless Steel
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Height
72"
Enclosure Width
26.5"
Component
Disconnect Enclosure
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 3R
Enclosure NEMA Rating
NEMA Type 12
Cutout Type
Preferred Cutout
Manufacturer
Hoffman
Features
Heavy-duty three-point latching mechanism on each door, operated by nVent HOFFMAN's black die-cast PowerGlide padlocking handle, back die-cast quarter-turn latches with slotted insert provided on the top and bottom of each door
Flange trough collar on all four sides of door openings
Seamless foam-in-place one-piece gasket provides water-, oil- and dust-tight seal against contaminants
Black Die-Cast PowerGlide handle has integral screwdriver defeater
Seams continuously welded and ground smooth
Disconnect enabled enclosure is designed to house electronic controls
Collar studs on inside of enclosure back for optional mounting panels
High-impact plastic Data Pocket kit included with enclosure
Bonding provision on door, grounding stud on body
Heavy-duty Type 316L stainless steel lifting eyes
Concealed stainless steel hinges provide 180-degree door opening and allow easy door removal and cleaning of hinge area
Accessory mounting channel provided in enclosure
Downloads
Hoffman A72HXS2718SSLPQT 2D DXF CAD.zipHoffman A72HXS2718SSLPQT 3D STEP CAD.zipHoffman A72HXS2718SSLPQT Declaration of Compliance.pdfHoffman A72HXS2718SSLPQT Dimension Drawing.gifHoffman A72HXS2718SSLPQT Enclosure Alterations Manual.pdfHoffman A72HXS2718SSLPQT EU Certification.pdfHoffman A72HXS2718SSLPQT Instruction Manual.pdfHoffman A72HXS2718SSLPQT Large Enclosure Handling Instructions CODE.pdfHoffman A72HXS2718SSLPQT Large Enclosure Handling Manual.pdfHoffman A72HXS2718SSLPQT Spec Sheet.pdfHoffman A72HXS2718SSLPQT UL Certification.pdf
