Ericson 83FMS012A Perma-Sync Molded Cordset - 12 ft, 16 AWG, 13 Amp, 600 Volt, Yellow
Normally In Stock
Code: 583460
Ericson 83FMS012A Mini-Sync Double End F Straight M Straight 3 Pole 12ft Pvc - 2" x 12" x 9" (LxHxW)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $150 FROM ERICSON FOR PRODUCT TO SHIP
$85.73
Sale Price
$71.44
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

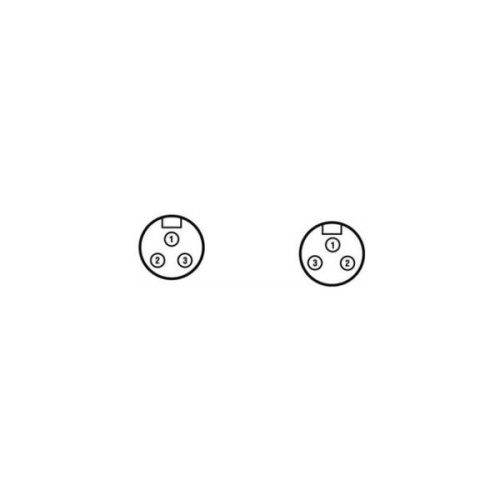

Ericson Yellow Plug (Str) & Conn (Str) (SKU: 83FMS012A) is an IP68 and NEMA 6P rated Mini-Sync connector with a 12-foot 16 AWG 600VAC STOW yellow cable. It is ideal for various applications such as conveyors, robotics, and packaging machinery. The configuration style is FMS - Female Straight / Male Straight with single keyway and 3 poles. This Mini connector is made with high-quality materials like stainless steel contact sleeves and brass contact material with gold plating over nickel. The load capacity is 13A at 600VAC. The coupling nut is made of black anodized machined aluminum and the wiring code is 1 = Green, 2 = Black, 3 = White. The contact carrier is made of nitrile rubber. - Typical applications include sensors on conveyors, automated assembly equip, robotics, packaging machinery, Bus systems, and Transportaion equipment Products that typically use Mini-Sync connectors are proximity sensors, limit switches, photo cells, valves, tools, foot operated switches, crane/hoist controls.
Specifications
Manufacturer
Ericson
Voltage
600 Volt
Component
Cordsets
Wire Gauge
16 AWG
Load Capacity (Amps)
13 Amp
Cable Type
STOW
Sub Component
Molded Cordset
IP Rating
IP68
NEMA Rating
NEMA 6P
Features
NEMA 6P and IP68 Protection
Made in the USA
Compatible with U.S. and European sensors
High-impact resistant contact carriers
Corrosion resistant gold plated contacts
Secure pin and contact crimp termination
Mechanically keyed
Field installable
Stress and harsh environment resistant
Vibration resistant
Designed for low amperage AC or DC control systems
Wide range of configuration alternatives available including male and female connections, 2 thru 12 pole pin-outs, straight 90° configurations and single or dual keyway
