Code: 583282

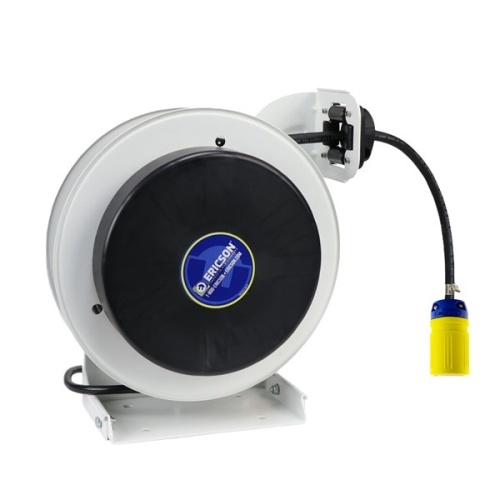

Ericson F3123-25-L520 Light Industrial Grade Cable Reel - 25 ft, 12 AWG, 20 Amp, 125 Volt, White/Black
Normally In Stock
Ericson F3123-25-L520 Reel, Flex Rig, Light Ind. Grade, 25 Ft Of 12/3 Sjow, Connector Nema L5-20c, Primary Feeder = Plug Nema 5-20 @ 6 Ft - 9" x 20" x 16" (LxHxW)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $250 FROM ERICSON FOR PRODUCT TO SHIP
$877.25
Sale Price
$731.04
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ericson F3123-25-L520 is a white and black light industrial-grade power cord designed for warehouses, retail stores, maintenance shops, schools, and laboratories. With a load capacity of 20 amps and a voltage of 125 volts, it is ideal for powering tools, machines, and light sources. The cable length is 25 feet and it features a steel frame and nylon construction for durability. The NEMA 2 environmental rating ensures protection against dust and liquids. This power cord is equipped with a plug NEMA 5-20 and a connector NEMA L5-20C, and it comes with a commercial-grade duty reel for convenient storage. - Ideal for warehouses, retail stores, maintenance shops, schools, and laboratories to power tools, seasonal displays, machines, and light sources
Specifications
Component
Cable Reel
Manufacturer
Ericson
Cable Type
SJOW
Wire Gauge
12 AWG
Load Capacity (Amps)
20 Amp
Voltage
125 Volt
NEMA Rating
NEMA 2
Finish
White Powder Coated Metal
Sub Component
Light Industrial Grade Cable Reel
Reel Type
F3000 - Commercial Grade Duty (13" Spool Diameter)
Construction
Steel Frame
Construction
Nylon
Features
Adjustable ball stop and locking ratchet
Four-roller cable guide minimizes cable stress that extends the life of the cable
Separate innovative mounting base plate offers flexibility in mounting options, attach one to a ceiling, wall, or bench
cULus Listed
Designed for indoor use, NEMA 2 rated
20 amp, 125-volt slip ring
Six-foot primary feeder cord
Adjustable ball stop & guide arm
Ceiling, wall, or bench mounting
Reinforced steel frame
Black nylon molded slip cover
Best-in-class, robust, long-life spring
1 Year Warranty
Made in the USA
