Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 583278

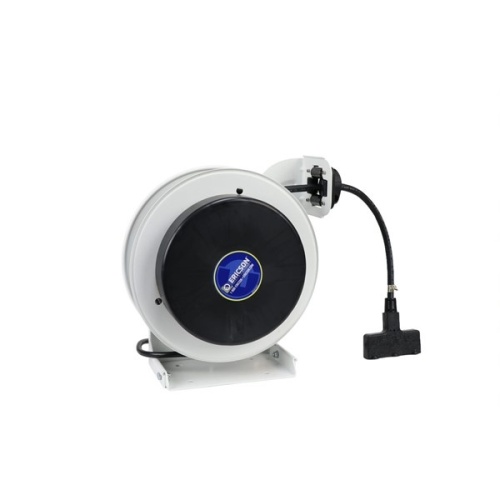

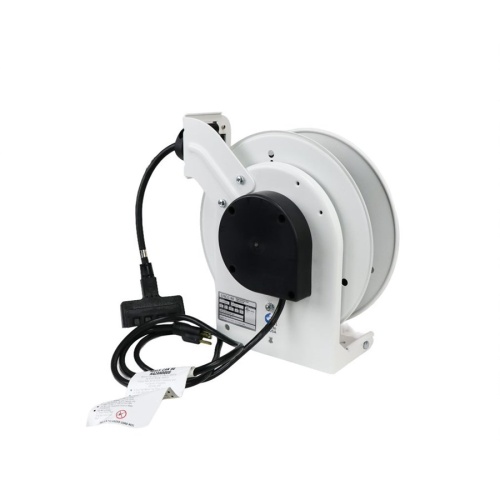

Ericson F3163-25-TT10 Light Industrial Grade Cable Reel - 25 ft, 16 AWG, 10 Amp, 125 Volt, White/Black
Normally In Stock
Ericson F3163-25-TT10 Reel, Flex Rig, Light Ind. Grade, 25 Ft Of 16/3 Sow, Tri-Tap - (3) Nema 5-15r, Primary Feeder = Plug Nema 5-15 @ 6 Ft - 9" x 20" x 16" (LxHxW)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $250 FROM ERICSON FOR PRODUCT TO SHIP
$783.38
Sale Price
$652.82
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ericson F3163-25-TT10 Power Extension Cord is a light industrial-grade product designed for use in warehouses, retail stores, maintenance shops, schools, and laboratories. It features a steel frame and nylon construction with a white powder-coated metal finish for durability. The cable has a length of 25 ft and a load capacity of 10 Amps. It is ideal for powering tools, seasonal displays, machines, and light sources. The cord has a NEMA 2 environmental rating and is designed for 125V applications. It has a Tri-Tap secondary cable with 3 NEMA 5-15R outlets and a primary cable with a NEMA 5-15 plug. The cable type is SOW and it is wound on a F3000 commercial-grade duty reel with a 13" spool diameter. The AWG is 16. - Ideal for warehouses, retail stores, maintenance shops, schools, and laboratories to power tools, seasonal displays, machines, and light sources
Specifications
Component
Cable Reel
Manufacturer
Ericson
Voltage
125 Volt
NEMA Rating
NEMA 2
Cable Type
SOW
Wire Gauge
16 AWG
Load Capacity (Amps)
10 Amp
Finish
White Powder Coated Metal
Sub Component
Light Industrial Grade Cable Reel
Reel Type
F3000 - Commercial Grade Duty (13" Spool Diameter)
Construction
Steel Frame
Construction
Nylon
Features
Adjustable ball stop and locking ratchet
Four-roller cable guide minimizes cable stress that extends the life of the cable
Separate innovative mounting base plate offers flexibility in mounting options, attach one to a ceiling, wall, or bench
cULus Listed
Designed for indoor use, NEMA 2 rated
20 amp, 125-volt slip ring
Six-foot primary feeder cord
Adjustable ball stop & guide arm
Ceiling, wall, or bench mounting
Reinforced steel frame
Black nylon molded slip cover
Best-in-class, robust, long-life spring
1 Year Warranty
Made in the USA
