Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 583274

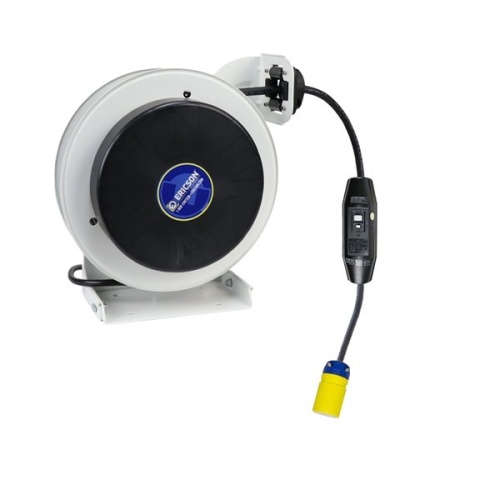

Ericson F3123-50-520G Light Industrial Grade Cable Reel - 50 ft, 12 AWG, 20 Amp, 125 Volt, White/Black
Normally In Stock
Ericson F3123-50-520G Reel, Flex Rig, Light Ind. Grade, 50 Ft Of 12/3 Sjow, Connector Nema 5-20c + Gfci, Primary Feeder = Plug Nema 5-20 @ 6 Ft - 9" x 20" x 16" (LxHxW)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $250 FROM ERICSON FOR PRODUCT TO SHIP
$961.60
Sale Price
$801.33
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ericson F3123-50-520G Power Reel is a white and black light industrial-grade product with a NEMA 2 environmental rating. It features a steel frame and nylon construction, a 50ft SJOW cable, and a 20A load capacity. Ideal for various applications, it has a white powder-coated metal finish and a secondary cable with a NEMA 5-20C connector and GFCI. The primary cable has a NEMA 5-20 plug and is 6ft long, while the reel type is F3000 - Commercial Grade Duty with a 13" spool diameter. AWG is 12. - Ideal for warehouses, retail stores, maintenance shops, schools, and laboratories to power tools, seasonal displays, machines, and light sources
Specifications
Component
Cable Reel
Manufacturer
Ericson
Cable Type
SJOW
Wire Gauge
12 AWG
Load Capacity (Amps)
20 Amp
Voltage
125 Volt
NEMA Rating
NEMA 2
Finish
White Powder Coated Metal
Sub Component
Light Industrial Grade Cable Reel
Reel Type
F3000 - Commercial Grade Duty (13" Spool Diameter)
Construction
Steel Frame
Construction
Nylon
Features
Adjustable ball stop and locking ratchet
Four-roller cable guide minimizes cable stress that extends the life of the cable
Separate innovative mounting base plate offers flexibility in mounting options, attach one to a ceiling, wall, or bench
cULus Listed
Designed for indoor use, NEMA 2 rated
20 amp, 125-volt slip ring
Six-foot primary feeder cord
Adjustable ball stop & guide arm
Ceiling, wall, or bench mounting
Reinforced steel frame
Black nylon molded slip cover
Best-in-class, robust, long-life spring
1 Year Warranty
Made in the USA
