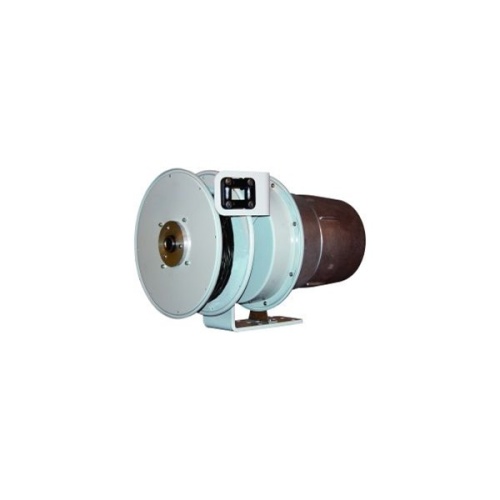

Ericson 8163-40 Pow-R-Reel Hazardous Location Grade Cable Reel - 40 ft, 16 AWG, 10 Amp, 600 Volt, Gray
Normally In Stock
Code: 583231
Ericson 8163-40 Reel Xp Grade, 40 Ft Of 16/3 Sow, Blunt Cable End, Primary Feeder = Coiled Wire Leads @ 1-2 Ft - 30" x 31" x 31" (LxHxW)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $150 FROM ERICSON FOR PRODUCT TO SHIP
$6884.03
Sale Price
$5736.69
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ericson 8163-40 is a gray Hazardous Location Grade cable with an environmental rating of NEMA 9 and NEMA 4. It is constructed with heavy-duty steel and cast aluminum, making it reliable for various applications such as petroleum facilities, grain storage, underground mines, and chemical plants. The cable has a length of 40 ft and a load capacity of 10 Amps at 600 Volts. It is ideal for use in hazardous environments and has a durable gray epoxy finish. The cable is equipped with a blunt cable end and has 3 conductors with coiled wire leads. The cable's AWG is 16, and it comes on an 8000 reel with a 13 1/2" spool diameter. - Ideal for Hazardous Locations within Petroleum facilities, Grain Storage and Handling Silos, Underground Mines, Waste Water Treatment Plants, Paint Booths, Drilling Rigs, and Chemical Plants
Specifications
NEMA Rating
NEMA 4
Component
Cable Reel
Manufacturer
Ericson
Voltage
600 Volt
Cable Type
SOW
Wire Gauge
16 AWG
Load Capacity (Amps)
10 Amp
Sub Component
Hazardous Location Grade Cable Reel
NEMA Rating
NEMA 9
Reel Type
8000 - Hazardous Locations And Heavy Industrial Duty (13 1/2" Spool Diameter)
Construction
Heavy-Duty Steel
Construction
Cast Aluminum
Finish
Gray Epoxy Finish
Features
UL 508C Table 36.1 / NEC Standards
Made in USA
Ratings through 35A
250V: 5-12 conductors
600V: 1-4 conductors
SOW-A cable on all reels
6' feeder cable provided
Operating Temperature Range: -22° F to 86° F (-30° C to 30° C)
Designed for indoor and outdoor use
Spring activated Ratchet
Easy ratchet lock-out for constant tension and return
Adjustable guide arm with 12 positions for easy payout positioning
Rugged, fabricated steel and cast aluminum construction
Gray epoxy finish on steel parts
Threaded cast aluminum slip ring enclosure
4-roller guides for direct or lateral pull-out and return to minimize cable stress
Adjustable ball stop included in 3 & 4 conductor reels
Pivot base available for 345-degree swivel applications
