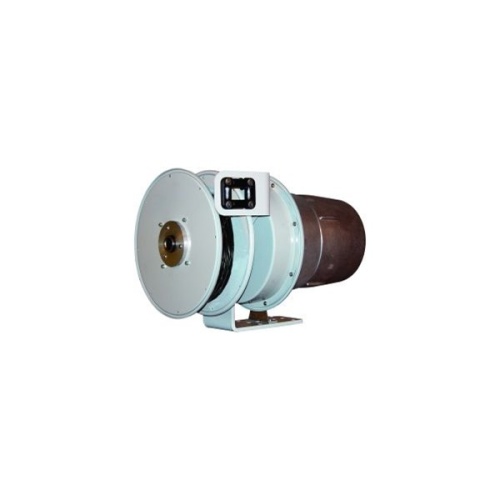

Ericson 8143-100 Pow-R-Reel Hazardous Location Grade Cable Reel - 100 ft, 14 AWG, 15 Amp, 600 Volt, Gray
Normally In Stock
Code: 583220
Ericson 8143-100 Reel Xp Grade, 100 Ft Of 14/3 Sow, Blunt Cable End, Primary Feeder = Coiled Wire Leads @ 1-2 Ft - 30" x 31" x 31" (LxHxW)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $150 FROM ERICSON FOR PRODUCT TO SHIP
$11669.45
Sale Price
$9724.54
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ericson 8143-100 is a heavy-duty steel and cast aluminum construction cable reel with a gray epoxy finish. It has a cable length of 100 ft and a load capacity of 15 Amps at 600 Volts. Ideal for hazardous locations, it is suitable for use in petroleum facilities, grain storage and handling silos, underground mines, wastewater treatment plants, paint booths, drilling rigs, and chemical plants. The cable is of type SOW, with 14 AWG and a blunt cable end. The reel type is 8000, designed for hazardous locations and heavy industrial duty, with a spool diameter of 13 1/2 inches. - Ideal for Hazardous Locations within Petroleum facilities, Grain Storage and Handling Silos, Underground Mines, Waste Water Treatment Plants, Paint Booths, Drilling Rigs, and Chemical Plants
Specifications
NEMA Rating
NEMA 4
Component
Cable Reel
Manufacturer
Ericson
Voltage
600 Volt
Wire Gauge
14 AWG
Load Capacity (Amps)
15 Amp
Cable Type
SOW
Sub Component
Hazardous Location Grade Cable Reel
NEMA Rating
NEMA 9
Reel Type
8000 - Hazardous Locations And Heavy Industrial Duty (13 1/2" Spool Diameter)
Construction
Heavy-Duty Steel
Construction
Cast Aluminum
Finish
Gray Epoxy Finish
Features
UL 508C Table 36.1 / NEC Standards
Made in USA
Ratings through 35A
250V: 5-12 conductors
600V: 1-4 conductors
SOW-A cable on all reels
6' feeder cable provided
Operating Temperature Range: -22° F to 86° F (-30° C to 30° C)
Designed for indoor and outdoor use
Spring activated Ratchet
Easy ratchet lock-out for constant tension and return
Adjustable guide arm with 12 positions for easy payout positioning
Rugged, fabricated steel and cast aluminum construction
Gray epoxy finish on steel parts
Threaded cast aluminum slip ring enclosure
4-roller guides for direct or lateral pull-out and return to minimize cable stress
Adjustable ball stop included in 3 & 4 conductor reels
Pivot base available for 345-degree swivel applications
