Code: 583186

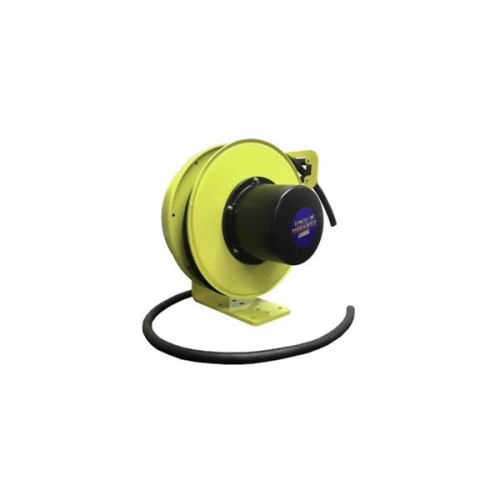

Ericson 5164-30 Pow-R-Reel Industrial Grade Cable Reel - 30 ft, 16 AWG, 8 Amp, 600 Volt, Yellow
Normally In Stock
Ericson 5164-30 Reel Ind. Grade, 30 Ft Of 16/4 Sow, Blunt Cable End, Primary Feeder = Blunt Cable End @ 1-2 Ft - 19" x 19" x 17" (LxHxW)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $250 FROM ERICSON FOR PRODUCT TO SHIP
$1748.44
Sale Price
$1457.03
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ericson yellow, industrial-grade power cable (5164-30) is constructed with heavy-duty steel and a nylon hub for durability. It has a NEMA 4 environmental rating and is CSA certified. With a cable length of 30 ft and load capacity of 8 amps, it is ideal for various industrial power requirements. The cable type is SOW and it has a 4-conductor configuration. Recommended for use in demanding environments such as drop lights, receptacle boxes, and overhead hoists. - Ideal for all types of industrial power requirements - drop lights and receptacle boxes, extendable conveyor control cables, overhead hoists, truck cranes, ladder trucks, and utility trucks.
Specifications
NEMA Rating
NEMA 4
Component
Cable Reel
Manufacturer
Ericson
Voltage
600 Volt
Finish
Yellow Powder Coated Metal
Sub Component
Industrial Grade Cable Reel
Cable Type
SOW
Wire Gauge
16 AWG
Load Capacity (Amps)
8 Amp
Reel Type
5000 - Industrial Duty (14" Spool Diameter)
Construction
Heavy-Duty Steel W/ Nylon Hub
Features
UL Listed, CSA Approved, for both US and Canada
Made in USA
Slip Ring Max Rating 35A 600V
Cable Ranges:
16/3-16/12
14/3-14/12
12/3-12/8
10/3-10/6
Available with and without feeder cable
Operating Temperature Range: -22° F to 86° F (-30° C to 30° C)
Designed for indoor and outdoor use
Ratchet style return
Easy ratched lock-out for constant tension and return
Adjustable guide arm with 12 positions for easy payout positioning
Rugged, all steel construction with fiberglass/nylon drum
Yellow powder coat finish standard, with Black Slip Ring Cover
NEMA 4 enclosed precision slip ring assembly for contacts and grounded slip ring
4-roller guides for direct or lateral pull-out and return to minimize cable stress
Separate mounting base for easy installation and relocation
Adjustable ball stop included in 3 & 4 conductor reels
Wide range of primary connection and secondary power and lighting attachments
Pivot base available for 345-degree swivel applications
