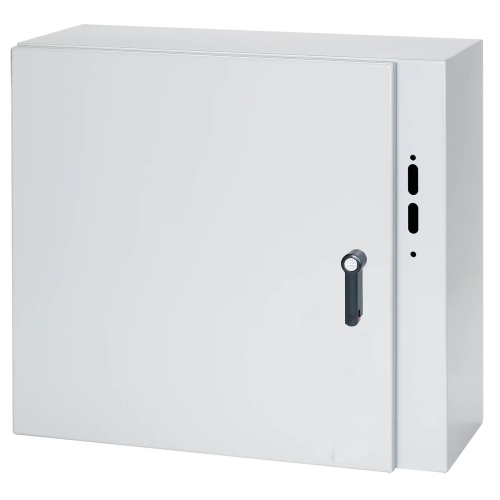

nVent Hoffman CDSC24268SS6 CONCEPT Disconnect Enclosure, Type 4
Normally In Stock
Code: 58317
nVent Hoffman CDSC24268SS6 24"x26"x8" Indoor 1 Door Wall Mount Preferred Cutout Disconnect (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$4951.64
Sale Price
$4126.37
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman CDSC24268SS6 CONCEPT Disconnect Enclosure, Type 4 Use CONCEPT ,Disconnect Enclosures in applications that require stylized design features and a preferred cutout that accepts major Manufacturer disconnect switches and circuit breakers. Furnished with Enclosures: Door interlock bracket welded to door, Three-point door latching system installed on door, Instructions to locate and install disconnect, Hardware kit consisting of padlocking door handle, panel mounting nuts, grounding hardware and sealing washers for mounting holes
Specifications
Enclosure Depth
8"
Enclosure Hinge Type
Standard Hinge
Enclosure Lock Type
Padlocking
Enclosure Latch Type
Tool-To-Open
Enclosure Composition
Stainless Steel
Enclosure NEMA Rating
NEMA Type 4
Enclosure Height
24"
Enclosure Width
26"
Component
Disconnect Enclosure
Line
CONCEPT
Enclosure Environment Rating
Indoor
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Number of Doors
1 Door
Cutout Type
Preferred Cutout
Manufacturer
Hoffman
Features
Holes provided in right-hand flange are for mounting disconnect operating handle and operating mechanism
External-formed 90-degree body flange
Integral door ramp to properly align door and gasket to body flange
Panel mounting studs fit optional Concept panels and other accessories (purchase panels separately)
Seams continuously welded and ground smooth
Disconnect model of Concept enclosure series, includes 3 point latching for closure.
Mounting holes in back of body for direct mounting or for optional external mounting brackets
Provisions on door for optional high-impact thermoplastic data pocket
Corner formed doors are interchangeable and easily removable by pulling captive hinge pins
Standard full-access door opening
Stainless steel hidden hinges
Seamless foam-in-place gasket
Three-point door latching system installed on door interlocks with disconnect handle for added safety
Unique integrated door handle with tool-to-open feature and padlock option installed on door
Self-grounding latch system with double seal
Bonding provision on door, grounding stud on body
Adjustable door interlock bracket fastened to door
Downloads
Hoffman CDSC24268SS6 2D DXF CAD.zipHoffman CDSC24268SS6 3D STEP CAD.zipHoffman CDSC24268SS6 Declaration of Compliance.pdfHoffman CDSC24268SS6 Dimension Drawing.gifHoffman CDSC24268SS6 EU Certification.pdfHoffman CDSC24268SS6 Instruction Manual.pdfHoffman CDSC24268SS6 Spec Sheet.pdfHoffman CDSC24268SS6 UL Certification.pdf
