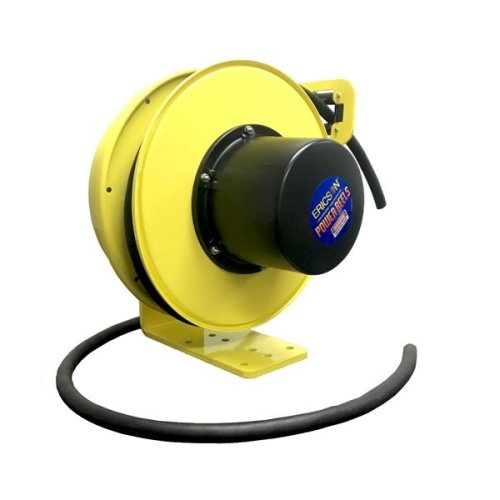

Ericson 5105-30 Pow-R-Reel Industrial Grade Cable Reel - 30 ft, 10 AWG, 20 Amp, 600 Volt, Yellow
Normally In Stock
Code: 583119
Ericson 5105-30 Reel Ind. Grade, 30 Ft Of 10/5 Sow, Blunt Cable End, Primary Feeder = Blunt Cable End @ 1-2 Ft - 19" x 19" x 17" (LxHxW)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $150 FROM ERICSON FOR PRODUCT TO SHIP
$3537.62
Sale Price
$2948.02
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ericson 5105-30 Industrial Grade Yellow Cable is a heavy-duty solution for all types of industrial power requirements. With a load capacity of 20 Amps and a cable length of 30ft, it is perfect for drop lights, receptacle boxes, conveyor control cables, hoists, cranes, and trucks. Constructed with durable steel and nylon hub, it ensures long-term reliability. The NEMA 4 rated, yellow powder coated finish provides additional protection. The cable type is SOW, the reel type is 5000, and it has 5 conductors with a 10 AWG. - Ideal for all types of industrial power requirements - drop lights and receptacle boxes, extendable conveyor control cables, overhead hoists, truck cranes, ladder trucks, and utility trucks.
Specifications
NEMA Rating
NEMA 4
Component
Cable Reel
Manufacturer
Ericson
Voltage
600 Volt
Finish
Yellow Powder Coated Metal
Sub Component
Industrial Grade Cable Reel
Load Capacity (Amps)
20 Amp
Cable Type
SOW
Wire Gauge
10 AWG
Reel Type
5000 - Industrial Duty (14" Spool Diameter)
Construction
Heavy-Duty Steel W/ Nylon Hub
Features
Low-friction, 4-roller cable guide on guide arm
Heavy duty formed steel stand
Heavy all-steel construction with durable yellow powder coated finish
Listing: Blunt products UL listed and CSA certified
Flange Size: 14“ diameter
Construction: Heavy duty all-steel with durable yellow powder coated finish with nylon drum
Black PVC Slip ring cover
Formed steel stand with multiple mounting holes
4-roller cable guide–adjustable to one of 12 positions
Ratchet can be engaged for positive lock or disengaged for constant tension
Safety chain hole provided for overhead mounting
Adjustable ball stop included
Grounded slip ring assembly for safety
Termination: 6 ft. feeder cord
Cable Type: Installed with type black SOOW 600V cable
Available in 16/6, 16/8, 16/10, 16/12, 14/6, 14/8, 14/10, 12/3, 12/4, 12/6, 12/8, 10/3, 10/4, 10/6
Environmental: Rated NEMA 4 for indoor and outdoor
Electrical Ratings: Max rating of Slip Ring = 35A, 600V
Options: Stretch or retrieve application, black or white powder coat finish, secondary attachments, pivot base, flop over guide arm kit, black or white cable, premium cable, or Perma-Kleen™ antimicrobial cable.
