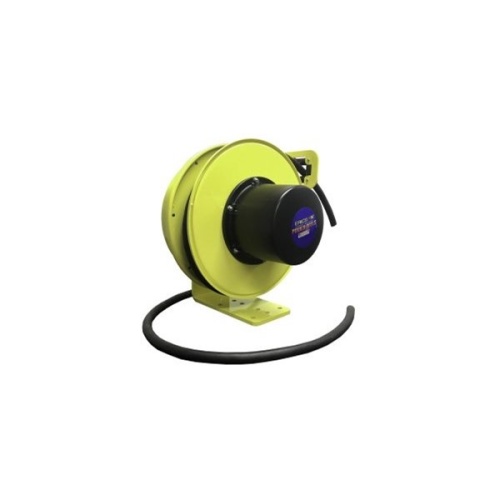

Ericson 51610-40 Pow-R-Reel Industrial Grade Cable Reel - 40 ft, 16 AWG, 5 Amp, 600 Volt, Yellow
Normally In Stock
Code: 583107
Ericson 51610-40 Reel Ind. Grade, 40 Ft Of 16/10 Sow, Blunt Cable End, Primary Feeder = Blunt Cable End @ 1-2 Ft - 19" x 19" x 17" (LxHxW)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $150 FROM ERICSON FOR PRODUCT TO SHIP
$3439.97
Sale Price
$2866.64
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ericson Yellow Industrial Grade NEMA 4 Power Cable, Sku 51610-40, is a heavy-duty steel construction with a nylon hub. It has a cable length of 40 ft and a load capacity of 5 Amps. CSA certified to C22.2 No. 308, it is ideal for various industrial power requirements. Suitable for 600 Volts, it features a Blunt Cable End secondary cable and a primary cable with a blunt cable end at 1-2 ft. The cable is made of SOW type and comes in a yellow powder-coated metal finish. The 10-conductor cable is available in pallet quantity of 12 and is stored on a 5000 reel. AWG 16. - Ideal for all types of industrial power requirements - drop lights and receptacle boxes, extendable conveyor control cables, overhead hoists, truck cranes, ladder trucks, and utility trucks.
Specifications
NEMA Rating
NEMA 4
Component
Cable Reel
Manufacturer
Ericson
Voltage
600 Volt
Finish
Yellow Powder Coated Metal
Sub Component
Industrial Grade Cable Reel
Cable Type
SOW
Wire Gauge
16 AWG
Load Capacity (Amps)
5 Amp
Reel Type
5000 - Industrial Duty (14" Spool Diameter)
Construction
Heavy-Duty Steel W/ Nylon Hub
Features
UL Listed, CSA Approved, for both US and Canada
Made in USA
Slip Ring Max Rating 35A 600V
Cable Ranges:
16/3-16/12
14/3-14/12
12/3-12/8
10/3-10/6
Available with and without feeder cable
Operating Temperature Range: -22° F to 86° F (-30° C to 30° C)
Designed for indoor and outdoor use
Ratchet style return
Easy ratched lock-out for constant tension and return
Adjustable guide arm with 12 positions for easy payout positioning
Rugged, all steel construction with fiberglass/nylon drum
Yellow powder coat finish standard, with Black Slip Ring Cover
NEMA 4 enclosed precision slip ring assembly for contacts and grounded slip ring
4-roller guides for direct or lateral pull-out and return to minimize cable stress
Separate mounting base for easy installation and relocation
Adjustable ball stop included in 3 & 4 conductor reels
Wide range of primary connection and secondary power and lighting attachments
Pivot base available for 345-degree swivel applications
