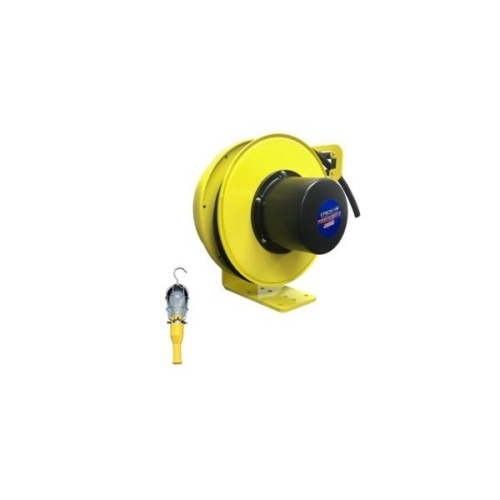

Ericson 5163-50-HSS Pow-R-Reel Industrial Grade Cable Reel - 50 ft, 16 AWG, 15 Amp, 125 Volt, Yellow
Normally In Stock
Code: 582990
Ericson 5163-50-HSS Reel Ind. Grade, 50 Ft Of 16/3 Sow, Handlamp (944-Rs), 5-15 Recept, On/Off Switch & Metal Guard, Pri Feeder = Blunt Cable End @ 1-2 Ft - 19" x 19" x 17" (LxHxW)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $150 FROM ERICSON FOR PRODUCT TO SHIP
$1747.61
Sale Price
$1456.34
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ericson 5163-50-HSS is a yellow, industrial-grade cable with a NEMA 2 environmental rating. It features heavy-duty steel construction with a nylon hub and has a load capacity of 15 amps. With a cable length of 50 feet, it is ideal for various industrial power requirements. The cable is compatible with 125 volts and has a 3 conductor AWG of 16. It comes with a 5000-Industrial Duty reel type and a yellow powder-coated metal finish. The cable also includes a secondary handlamp with a 5-15 receptacle, on/off switch, and metal guard. - Ideal for all types of industrial power requirements - drop lights and receptacle boxes, extendable conveyor control cables, overhead hoists, truck cranes, ladder trucks, and utility trucks.
Specifications
Component
Cable Reel
Manufacturer
Ericson
Finish
Yellow Powder Coated Metal
Sub Component
Industrial Grade Cable Reel
Voltage
125 Volt
NEMA Rating
NEMA 2
Load Capacity (Amps)
15 Amp
Cable Type
SOW
Wire Gauge
16 AWG
Reel Type
5000 - Industrial Duty (14" Spool Diameter)
Construction
Heavy-Duty Steel W/ Nylon Hub
Features
UL Listed, CSA Approved, for both US and Canada
Made in USA
Slip Ring Max Rating 35A 600V
Cable Ranges:
16/3-16/12
14/3-14/12
12/3-12/8
10/3-10/6
Available with and without feeder cable
Operating Temperature Range: -22° F to 86° F (-30° C to 30° C)
Designed for indoor and outdoor use
Ratchet style return
Easy ratched lock-out for constant tension and return
Adjustable guide arm with 12 positions for easy payout positioning
Rugged, all steel construction with fiberglass/nylon drum
Yellow powder coat finish standard, with Black Slip Ring Cover
NEMA 4 enclosed precision slip ring assembly for contacts and grounded slip ring
4-roller guides for direct or lateral pull-out and return to minimize cable stress
Separate mounting base for easy installation and relocation
Adjustable ball stop included in 3 & 4 conductor reels
Wide range of primary connection and secondary power and lighting attachments
Pivot base available for 345-degree swivel applications
