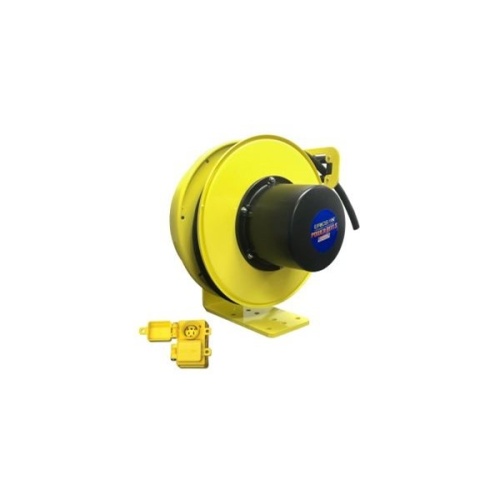

Ericson 5123-30-1612PWDX Pow-R-Reel Industrial Grade Cable Reel - 30 ft, 12 AWG, 20 Amp, 125 Volt, Yellow
Normally In Stock
Code: 582958
Ericson 5123-30-1612PWDX Reel Ind. Grade, 30 Ft Of 12/3 Sow, Outlet Box (Pwdx) & Wire Mesh, 2 Nema 5-20r Duplex, Primary Feeder = Blunt Cable End @ 1-2 Ft - 15" x 16.5" x 14" (LxHxW)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $150 FROM ERICSON FOR PRODUCT TO SHIP
$2022.14
Sale Price
$1685.12
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ericson 5123-30-1612PWDX is a heavy-duty steel construction industrial-grade cable with a yellow powder-coated finish. It has a NEMA 4 environmental rating and a load capacity of 20 amps. With a cable length of 30 feet, this SOW cable is ideal for various industrial power requirements. The reel type is 5000, featuring a 14" spool diameter. It has a secondary cable with an outlet box and wire mesh, including 2 NEMA 5-20R duplex outlets. The primary cable has a blunt cable end at 1-2 feet. With 3 conductors and an AWG of 12, it operates at 125 volts. - Ideal for all types of industrial power requirements - drop lights and receptacle boxes, extendable conveyor control cables, overhead hoists, truck cranes, ladder trucks, and utility trucks.
Specifications
NEMA Rating
NEMA 4
Component
Cable Reel
Manufacturer
Ericson
Finish
Yellow Powder Coated Metal
Sub Component
Industrial Grade Cable Reel
Wire Gauge
12 AWG
Load Capacity (Amps)
20 Amp
Voltage
125 Volt
Cable Type
SOW
Reel Type
5000 - Industrial Duty (14" Spool Diameter)
Construction
Heavy-Duty Steel W/ Nylon Hub
Features
Low-friction, 4-roller cable guide on guide arm
Heavy duty formed steel stand
Heavy all-steel construction with durable yellow powder coated finish
Listing: Blunt products UL listed and CSA certified
Flange Size: 14“ diameter
Construction: Heavy duty all-steel with durable yellow powder coated finish with nylon drum
Black PVC Slip ring cover
Formed steel stand with multiple mounting holes
4-roller cable guide–adjustable to one of 12 positions
Ratchet can be engaged for positive lock or disengaged for constant tension
Safety chain hole provided for overhead mounting
Adjustable ball stop included
Grounded slip ring assembly for safety
Termination: 6 ft. feeder cord
Cable Type: Installed with type black SOOW 600V cable
Available in 16/6, 16/8, 16/10, 16/12, 14/6, 14/8, 14/10, 12/3, 12/4, 12/6, 12/8, 10/3, 10/4, 10/6
Environmental: Rated NEMA 4 for indoor and outdoor
Electrical Ratings: Max rating of Slip Ring = 35A, 600V
Options: Stretch or retrieve application, black or white powder coat finish, secondary attachments, pivot base, flop over guide arm kit, black or white cable, premium cable, or Perma-Kleen™ antimicrobial cable.
