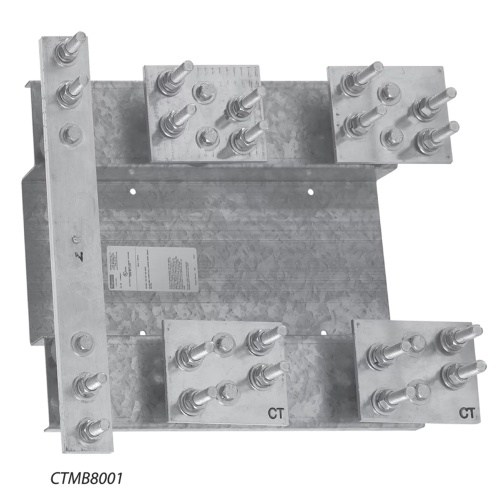

nVent Hoffman CTMB8001 Current Transformer Mounting Base
Normally In Stock
Code: 58288
nVent Hoffman CTMB8001 CT Mounting Base
Condition: New
Usually ships Same Day or Next Day$558.90
Sale Price
$465.75
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman CTMB8001 Current Transformer Mounting Base CT Mounting Base with mechanical lugs and a model with lugs on one side and studs on the other to accommodate the preference difference between line and load connections. 12-gauge galvanized formed base has electrically isolated mount/termination platform. Pre-punched mounting base holes align with the studs in a CT enclosure. Spacing for bar-type current transformer that conforms to ANSI 12.11, Neutral bar with 10-32 tap screw, and Conductor provisions: either mechanical lugs or 1/2-in. bolt on 1-3/4-in. centers with nut, spring and flat washer.
Specifications
Component
Current Transformer Mounting Base
Manufacturer
Hoffman
Features
Neutral bar with 10-32 tap screw
12-gauge galvanized formed base has electrically isolated mount/termination platform
Conductor provisions: either mechanical lugs or 1/2-in. bolt on 1-3/4-in. centers with nut, spring and flat washer
Spacing for bar-type current transformer that conforms to ANSI 12.11
