Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

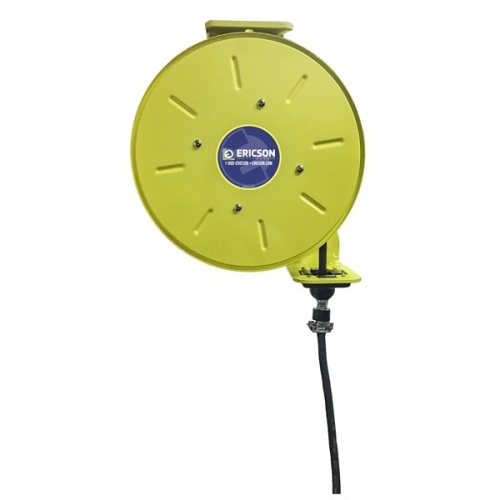

Ericson 4163-50-1917LED-12S Pow-R-Reel Industrial Grade Cable Reel - 50 ft, 16 AWG, 10 Amp, 12 Volt, Yellow
Normally In Stock
Code: 582674
Ericson 4163-50-1917LED-12S Reel Ind. Grade, 50 Ft Of 16/3 So, Handlamp, Low Voltage (1917), Led Lamp, Primary Feeder = Plug Nema 5-15 @ 6 Ft - 11" x 20" x 16" (LxHxW)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $150 FROM ERICSON FOR PRODUCT TO SHIP
$1354.63
Sale Price
$1128.86
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ericson heavy-duty all-steel construction industrial grade cable is ideal for heavier-duty applications such as drop lights, drop power, mobile equipment control cables, conveyor control cables, small cranes/hoists, and utility trucks. It has a load capacity of 10 Amps and a cable length of 50 feet. The NEMA 2 environmental rating and yellow powder-coated metal finish ensure durability. The cable type is SOW, and the reel type is 4000, with a 12" spool diameter. It has a low voltage handlamp secondary cable with an LED lamp and a primary cable with a NEMA 5-15 plug. - Ideal for heavier-duty applications such as drop lights, drop power, mobile equipment control cables, conveyor control cables, small cranes/hoists, and utility trucks
Specifications
Voltage
12 Volt
Component
Cable Reel
Manufacturer
Ericson
Construction
Heavy-Duty All-Steel
Finish
Yellow Powder Coated Metal
Sub Component
Industrial Grade Cable Reel
NEMA Rating
NEMA 2
Reel Type
4000 - Light Industrial Duty (12" Spool Diameter)
Cable Type
SOW
Wire Gauge
16 AWG
Load Capacity (Amps)
10 Amp
Features
Adjustable ball stop included
Heavy all-steel construction with durable yellow powder coated finish
Listing: UL listed and CSA certified
Flange Size: 12” diameter
Formed steel stand with multiple mounting holes
4-roller cable guide - adjustable to one of 12 positions
Ratchet can be engaged for positive lock or disengaged for constant tension
Safety chain hole provided for overhead mounting
Adjustable ball stop included
Grounded slip ring assembly for safety
Construction: Heavy all-steel with durable yellow powder coated finish
Termination: 6 ft. feeder cord (3 conductor - molded plug, all others - blunt cable)
Cable Type: Installed with type SJOW/SJEOW 300V or SOOW 600V cable
Environmental: Reel housing is rated NEMA 4 for Indoor & Outdoor. Reel is derated to NEMA 2 with any reel attachment or with a molded plug on primary w/ SJ 3 conductor cable.
Electrical Ratings: Max rating of slip Ring = 30A, 600V
Options: Stretch or retrieve application, black or white powder coat finish, secondary attachments, pivot base, or Perma-Kleen™ antimicrobial cable
