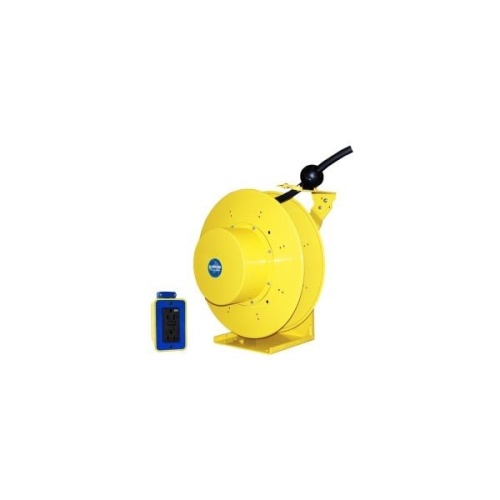

Ericson 6123-70-BG-20 Pow-R-Reel Industrial Grade - High Cap Cable Reel - 70 ft, 12 AWG, 16 Amp, 125 Volt, Yellow
Normally In Stock
Code: 582673
Ericson 6123-70-BG-20 Reel Ind. Grade, 70 Ft Of 12/3 Sow, Outlet Box, 2 Nema 5-20r Duplexes + Gfci, Primary Feeder = Coiled Wire Leads @ 1-2 Ft - 30" x 31" x 31" (LxHxW)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $150 FROM ERICSON FOR PRODUCT TO SHIP
$5226.77
Sale Price
$4355.64
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ericson 6123-70-BG-20 is a heavy-duty, yellow colored industrial grade cable reel with a NEMA 4 environmental rating. With a load capacity of 16 amps and cable length of 70 feet, it is ideal for various applications including utility trucks, overhead cranes, hoists, aviation hangers, and automated material handling. Its all-steel construction and yellow powder coated finish ensure durability. The reel is equipped with a 6000 spool diameter and features a secondary cable outlet box with NEMA 5-20R duplexes and GFCI. It has a primary cable with a 1" NPT female feeder hub for easy field installation to the slip ring. The cable type is SOW and it operates at 125 volts. Featuring 3 conductors and an AWG of 12, this product offers reliable performance in demanding industrial environments. - Ideal for use in utility trucks, overhead cranes (classes A-C), hoists, aviation hangers, and automated material handling
Specifications
NEMA Rating
NEMA 4
Component
Cable Reel
Manufacturer
Ericson
Sub Component
Industrial Grade - High Cap Cable Reel
Reel Type
6000 - Heavy Industrial Duty (19" Spool Diameter)
Construction
Heavy-Duty All-Steel
Finish
Yellow Powder Coated Metal
Wire Gauge
12 AWG
Voltage
125 Volt
Cable Type
SOW
Load Capacity (Amps)
16 Amp
Features
cULus listed for both US and Canada
Made in USA
Ratings through 35A-150A
250V: 4 or more conductors
600V: 1-4 conductors
Cable Ranges:
SOOW-A
Type W
Type G-GC
Available with and without feeder cable
Operating Temperature Range: -22° F to 86° F (-30° C to 30° C)
Designed for indoor and outdoor use
Ratchet style return
Easy ratched lock-out for constant tension and return
Adjustable guide arm with 12 positions for easy payout positioning
Rugged, all steel construction
Yellow powder coat finish standard
Sealed, lifetime lubricated spring motor canister for easy and safe spring replacement
NEMA 4 enclosed precision slip ring assembly for contacts and grounded slip ring
2-piece roller guide can be repositioned to 4 different locations
4-roller guides for direct or lateral pull-outs
Adjustable ball stop included in 3 & 4 conductor reels, other styles optional
Wide range of secondary power attachments
Pivot base available for 345-degree swivel applications
