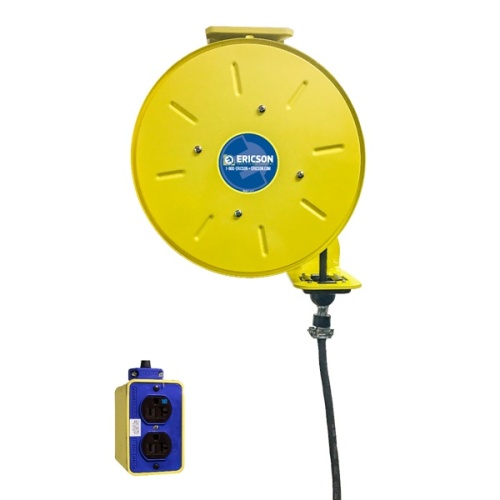

Ericson 4123-50-BGW Pow-R-Reel Industrial Grade Cable Reel - 50 ft, 12 AWG, 20 Amp, 125 Volt, White
Normally In Stock
Code: 582584
Ericson 4123-50-BGW Reel Ind. Grade White, 50 Ft Of 12/3 Sjow, Outlet Box, 2 Nema 5-20r Duplexes, Primary Feeder = Inline Manual Gfci, Nema 5-20 Plug @ 6 Ft - 11" x 20" x 16" (LxHxW) *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $150 FROM ERICSON FOR PRODUCT TO SHIP
*NON-CANCELLABLE, NON-RETURNABLE*
$1130.66
Sale Price
$942.22
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ericson NEMA 2 rated industrial-grade power cable (sku: 4123-50-BGW) features a heavy-duty all-steel construction, a 50 ft long SJOW cable with 12 AWG and a load capacity of 20 Amps. It is CSA certified to C22.2 No. 308, suitable for applications like drop lights, mobile equipment control cables, and small cranes/hoists. The yellow powder-coated metal finish, 12" spool diameter, and outlet box (6000) with 2 NEMA 5-20R duplexes make it ideal for heavy-duty use. - Ideal for heavier-duty applications such as drop lights, drop power, mobile equipment control cables, conveyor control cables, small cranes/hoists, and utility trucks
Specifications
Component
Cable Reel
Manufacturer
Ericson
Construction
Heavy-Duty All-Steel
Finish
Yellow Powder Coated Metal
Sub Component
Industrial Grade Cable Reel
Cable Type
SJOW
Wire Gauge
12 AWG
Load Capacity (Amps)
20 Amp
Voltage
125 Volt
NEMA Rating
NEMA 2
Reel Type
4000 - Light Industrial Duty (12" Spool Diameter)
Features
Adjustable ball stop included
Heavy all-steel construction with durable yellow powder coated finish
Listing: UL listed and CSA certified
Flange Size: 12” diameter
Formed steel stand with multiple mounting holes
4-roller cable guide - adjustable to one of 12 positions
Ratchet can be engaged for positive lock or disengaged for constant tension
Safety chain hole provided for overhead mounting
Adjustable ball stop included
Grounded slip ring assembly for safety
Construction: Heavy all-steel with durable yellow powder coated finish
Termination: 6 ft. feeder cord (3 conductor - molded plug, all others - blunt cable)
Cable Type: Installed with type SJOW/SJEOW 300V or SOOW 600V cable
Environmental: Reel housing is rated NEMA 4 for Indoor & Outdoor. Reel is derated to NEMA 2 with any reel attachment or with a molded plug on primary w/ SJ 3 conductor cable.
Electrical Ratings: Max rating of slip Ring = 30A, 600V
Options: Stretch or retrieve application, black or white powder coat finish, secondary attachments, pivot base, or Perma-Kleen™ antimicrobial cable
