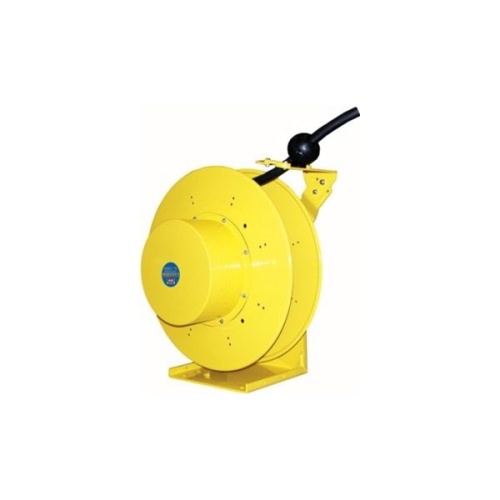

Ericson 6063-30 Pow-R-Reel Industrial Grade - High Cap Cable Reel - 30 ft, 6 AWG, 50 Amp, 600 Volt, Yellow
Normally In Stock
Code: 582583
Ericson 6063-30 Reel Ind. Grade, 30 Ft Of 6/3 Type W, Blunt Cable End, Primary Feeder = Coiled Wire Leads @ 1-2 Ft Lift/Drag, Locking Ratchet & Ball Stop Culus - 30" x 31" x 31" (LxHxW)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $150 FROM ERICSON FOR PRODUCT TO SHIP
$6299.64
Sale Price
$5249.70
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ericson 6063-30 is a yellow, industrial-grade high-capacity NEMA 4 power reel with a 30ft long Type W cable. It features heavy-duty all-steel construction, a load capacity of 50 Amps, and is suitable for use in utility trucks, overhead cranes, hoists, aviation hangers, and automated material handling. The reel has a 19" spool diameter, a yellow powder-coated metal finish, and comes with a blunt cable end. The primary cable has a 1" NPT female feeder hub for field installation to slip ring. The product is designed for 600V applications and is AWG 6 rated. - Ideal for use in utility trucks, overhead cranes (classes A-C), hoists, aviation hangers, and automated material handling
Specifications
NEMA Rating
NEMA 4
Component
Cable Reel
Manufacturer
Ericson
Sub Component
Industrial Grade - High Cap Cable Reel
Cable Type
Type W
Wire Gauge
6 AWG
Load Capacity (Amps)
50 Amp
Voltage
600 Volt
Reel Type
6000 - Heavy Industrial Duty (19" Spool Diameter)
Construction
Heavy-Duty All-Steel
Finish
Yellow Powder Coated Metal
Features
cULus listed for both US and Canada
Made in USA
Ratings through 35A-150A
250V: 4 or more conductors
600V: 1-4 conductors
Cable Ranges:
SOOW-A
Type W
Type G-GC
Available with and without feeder cable
Operating Temperature Range: -22° F to 86° F (-30° C to 30° C)
Designed for indoor and outdoor use
Ratchet style return
Easy ratched lock-out for constant tension and return
Adjustable guide arm with 12 positions for easy payout positioning
Rugged, all steel construction
Yellow powder coat finish standard
Sealed, lifetime lubricated spring motor canister for easy and safe spring replacement
NEMA 4 enclosed precision slip ring assembly for contacts and grounded slip ring
2-piece roller guide can be repositioned to 4 different locations
4-roller guides for direct or lateral pull-outs
Adjustable ball stop included in 3 & 4 conductor reels, other styles optional
Wide range of secondary power attachments
Pivot base available for 345-degree swivel applications
