Ericson 84FRC Female Receptacle - Black, IP68, 10 Amp, 600 Volt
Normally In Stock
Code: 577097
Ericson 84FRC Mini-Sync Receptacle Female Straight 4 Pole 1ft Leads PVC - 12" x 9" x 2" (LxWxH)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $150 FROM ERICSON FOR PRODUCT TO SHIP
$41.46
Sale Price
$34.55
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

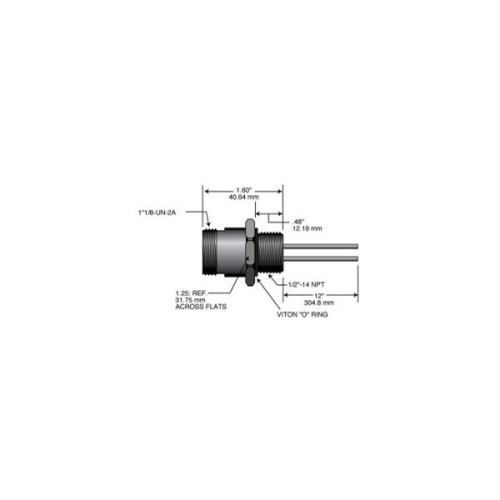

Ericson 84FRC in black is a female Mini-Sync connector, with an IP68 environmental rating and a cable length of 1 ft. It is designed for typical applications in various industries such as sensors, robotics, and packaging machinery. The connector features a 16 AWG 600VAC wire, a single keyway, a 4-pole configuration, and a load capacity of 10A at 600VAC. Its contact sleeve is made of stainless steel, while the over molded body is PVC. The contact material is brass, gold plated over nickel, and the coupling nut is machined aluminum with a black anodized finish. The wiring code for this connector is 1=Black, 2=White, 3=Red, and 4=Green. The contact carrier material is nitrile rubber.
Specifications
Receptacle Color
Black
Receptacle Amperage
10 Amp
Receptacle Voltage
600 Volt
Component
Receptacle
Manufacturer
Ericson
Receptacle Number of Poles
4 Pole
Cable Length
1 Ft
Receptacle NEMA Type
Type 6P
Receptacle IP Rating
IP 68
Receptacle Max Wire Size
16 AWG
Features
NEMA 6P and IP68 Protection
Made in the USA
Compatible with U.S. and European sensors
High-impact resistant contact carriers
Corrosion resistant gold plated contacts
Secure pin and contact crimp termination
Mechanically keyed
Field installable
Stress and harsh environment resistant
Vibration resistant
Designed for low amperage AC or DC control systems
Wide range of configuration alternatives available including male and female connections, 2 thru 12 pole pin-outs, straight 90° configurations and single or dual keyway
