Ericson 83MRC Male Receptacle - Black, IP68, 13 Amp, 600 Volt
Normally In Stock
Code: 577085
Ericson 83MRC Mini-Sync Receptacle Male Straight 3 Pole 1ft Leads PVC - 12" x 9" x 2" (LxWxH)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $150 FROM ERICSON FOR PRODUCT TO SHIP
$30.60
Sale Price
$25.50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

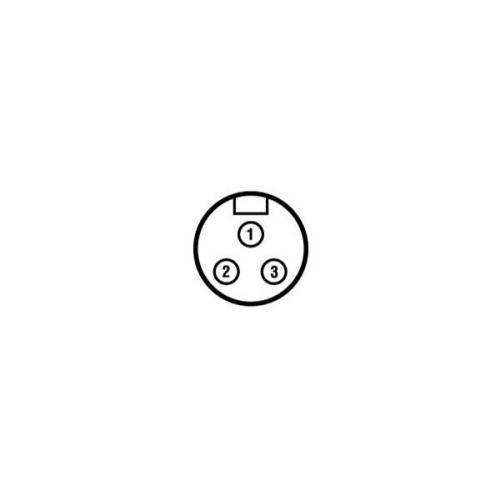

Ericson 83MRC Mini-Sync connector is a black male receptacle with an IP68 environmental rating. It has a 1 ft cable length and is ideal for use in typical applications such as sensors on conveyors, automated assembly equipment, robotics, and packaging machinery. This Mini-Sync connector is commonly used with proximity sensors, limit switches, photo cells, valves, and foot-operated switches. It has a single keyway and 3 poles, with a load capacity of 13A, 600VAC. The connector features a stainless steel contact sleeve, PVC overmolded body, and brass contact material with gold plating over nickel. The couplig nut is made of machined aluminum with a black anodized finish. The wiring code is 1=Green, 2=Black, 3=White, and the contact carrier material is nitrile rubber.
Specifications
Receptacle Color
Black
Receptacle Voltage
600 Volt
Component
Receptacle
Manufacturer
Ericson
Receptacle Number of Poles
3 Pole
Cable Length
1 Ft
Receptacle NEMA Type
Type 6P
Receptacle IP Rating
IP 68
Receptacle Max Wire Size
16 AWG
Receptacle Amperage
13 Amp
Features
NEMA 6P and IP68 Protection
Made in the USA
Compatible with U.S. and European sensors
High-impact resistant contact carriers
Corrosion resistant gold plated contacts
Secure pin and contact crimp termination
Mechanically keyed
Field installable
Stress and harsh environment resistant
Vibration resistant
Designed for low amperage AC or DC control systems
Wide range of configuration alternatives available including male and female connections, 2 thru 12 pole pin-outs, straight 90° configurations and single or dual keyway
