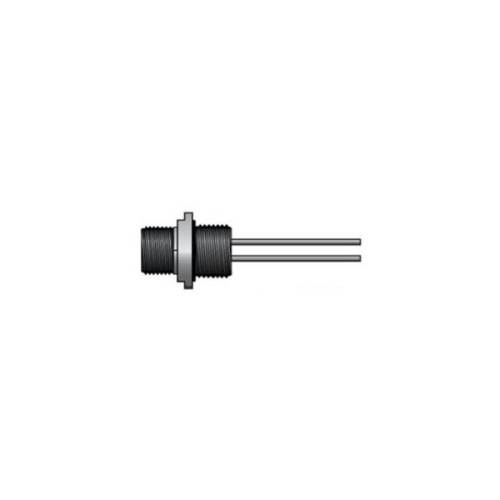

Ericson 812MRC Male Receptacle - Black, IP68, 7 Amp, 600 Volt
Normally In Stock
Code: 577019
Ericson 812MRC Mini-Sync Receptacle Male Straight 12 Pole 1ft Leads PVC - 12" x 9" x 2" (LxWxH)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $150 FROM ERICSON FOR PRODUCT TO SHIP
$147.88
Sale Price
$123.23
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ericson 812MRC is a black male Mini-Sync connector with an environmental rating of IP68 and NEMA 6P. With a cable length of 1 foot and a cable type of 16 AWG 600VAC wire, it is ideal for various applications like sensors, robotics, and packaging machinery. The connector features a single keyway and 12 poles, while the contact sleeve material is stainless steel and the over molded body material is PVC. Equipped with a load capacity of 7A and 600VAC, it has a coupling nut made of machined aluminum with a black anodized finish. The wiring code includes various color combinations for easy identification. The contact carrier material is Nitrile Rubber.
Specifications
Receptacle Color
Black
Receptacle Voltage
600 Volt
Component
Receptacle
Manufacturer
Ericson
Cable Length
1 Ft
Receptacle NEMA Type
Type 6P
Receptacle IP Rating
IP 68
Receptacle Amperage
7 Amp
Receptacle Max Wire Size
16 AWG
Receptacle Number of Poles
12 Pole
Features
NEMA 6P and IP68 Protection
Made in the USA
Compatible with U.S. and European sensors
High-impact resistant contact carriers
Corrosion resistant gold plated contacts
Secure pin and contact crimp termination
Mechanically keyed
Field installable
Stress and harsh environment resistant
Vibration resistant
Designed for low amperage AC or DC control systems
Wide range of configuration alternatives available including male and female connections, 2 thru 12 pole pin-outs, straight 90° configurations and single or dual keyway
