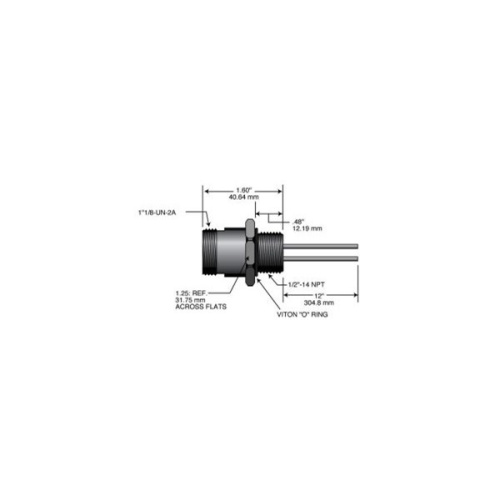

Ericson 812FRC Female Receptacle - Black, IP68, 7 Amp, 600 Volt
Normally In Stock
Code: 577007
Ericson 812FRC Mini-Sync Receptacle Female Straight 12 Pole 1ft Leads PVC - 12" x 9" x 2" (LxWxH)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $150 FROM ERICSON FOR PRODUCT TO SHIP
$275.69
Sale Price
$229.74
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ericson 812FRC is a black Mini-Sync connector with a single keyway and 12 poles. With an environmental rating of IP68 and NEMA 6P, it is ideal for typical applications such as sensors on conveyors, robotics, and packaging machinery. The cable length is 1 ft, and the cable type is 16 AWG 600VAC wire. The contact sleeve material is stainless steel, and the overmolded body material is PVC. Offering a load capacity of 7A at 600VAC, this connector is designed for durability with a machined aluminum, black anodized coupling nut. The wiring code is provided for easy installation.
Specifications
Receptacle Color
Black
Receptacle Voltage
600 Volt
Component
Receptacle
Manufacturer
Ericson
Cable Length
1 Ft
Receptacle NEMA Type
Type 6P
Receptacle IP Rating
IP 68
Receptacle Amperage
7 Amp
Receptacle Max Wire Size
16 AWG
Receptacle Number of Poles
12 Pole
Features
NEMA 6P and IP68 Protection
Made in the USA
Compatible with U.S. and European sensors
High-impact resistant contact carriers
Corrosion resistant gold plated contacts
Secure pin and contact crimp termination
Mechanically keyed
Field installable
Stress and harsh environment resistant
Vibration resistant
Designed for low amperage AC or DC control systems
Wide range of configuration alternatives available including male and female connections, 2 thru 12 pole pin-outs, straight 90° configurations and single or dual keyway
