Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 576991

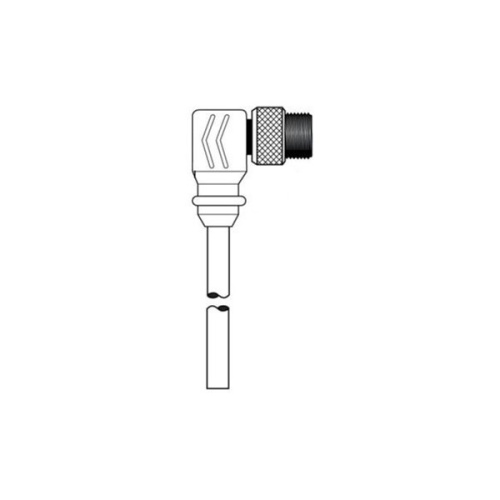

Ericson 810M9003A Plug (90 Deg) - Yellow, IP68, 7 Amp, 600 Volt
Normally In Stock
Ericson 810M9003A Mini-Sync Single End Male 90 10 Pole 3ft PVC - 12" x 9" x 2" (LxWxH)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $250 FROM ERICSON FOR PRODUCT TO SHIP
$119.15
Sale Price
$99.29
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ericson 810M9003A is a yellow plug (90 deg) with an IP68 environmental rating and a cable length of 3 ft. It is ideal for use in various applications such as sensors on conveyors, automated assembly equipment, and robotics. The Mini-Sync connector is commonly used with proximity sensors, limit switches, and valves. This Mini connector features a single keyway, 10 poles, and a load capacity of 7A, 600VAC. It is made with stainless steel contact sleeves, PVC over molded body, and brass contact material. The wiring code is Orange, Blue, White-Blk.Tr, Red-Blk.Tr, Green-Blk.Tr, Orange-Blk.Tr, Red, Green, Black, and White. The contact carrier material is Nitrile Rubber.
Specifications
Component
Plug
Receptacle Voltage
600 Volt
Receptacle Color
Yellow
Manufacturer
Ericson
Receptacle NEMA Type
Type 6P
Receptacle IP Rating
IP 68
Receptacle Amperage
7 Amp
Receptacle Max Wire Size
16 AWG
Cable Length
3 Ft
Receptacle Number of Poles
10 Pole
Features
NEMA 6P and IP68 Protection
Made in the USA
Compatible with U.S. and European sensors
High-impact resistant contact carriers
Corrosion resistant gold plated contacts
Secure pin and contact crimp termination
Mechanically keyed
Field installable
Stress and harsh environment resistant
Vibration resistant
Designed for low amperage AC or DC control systems
Wide range of configuration alternatives available including male and female connections, 2 thru 12 pole pin-outs, straight 90° configurations and single or dual keyway
