Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 576961

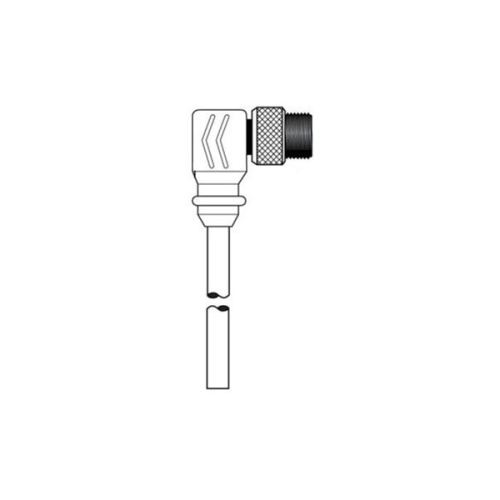

Ericson 76M9E020F Plug (90 Deg) - Yellow, IP68, 4 Amp, 300 Volt
Normally In Stock
Ericson 76M9E020F Micro-Sync Dual Key Single End M 90 6 Pole 20ft PVC - 12" x 9" x 2" (LxWxH)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $250 FROM ERICSON FOR PRODUCT TO SHIP
$113.27
Sale Price
$94.39
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ericson Micro-Sync M9 Male 90 Degrees Plug (Yellow, 20 ft) is an IP68 rated connector suitable for automotive assembly, pick n place robots, and material handling equipment. It has a dual keyway design, 6 poles, and a 22 AWG 300VAC STOW yellow cable. The contact sleeve is made of Zytel ST801, with a PVC over molded body. The contact material is brass, gold-plated over nickel. The connector has a load capacity of 4A at 300VAC and a coupling nut made of machined aluminum. Comes with a wiring code for easy installation.
Specifications
Component
Plug
Receptacle Color
Yellow
Manufacturer
Ericson
Receptacle Voltage
300 Volt
Receptacle Amperage
4 Amp
Receptacle NEMA Type
Type 6P
Receptacle IP Rating
IP 68
Receptacle Max Wire Size
22 AWG
Cable Length
20 Ft
Receptacle Number of Poles
6 Pole
Features
NEMA 6P and IP68 Protection
Made in the USA
Compatible with U.S. and European sensors
High-impact resistant contact carriers
Corrosion resistant gold plated contacts
Secure pin and contact crimp termination
Mechanically keyed
Field installable
Stress and harsh environment resistant
Vibration resistant
Designed for low amperage AC or DC control systems
Wide range of configuration alternatives available including male and female connections, 2 thru 12 pole pin-outs, straight 90° configurations and single or dual keyway
