Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 576944

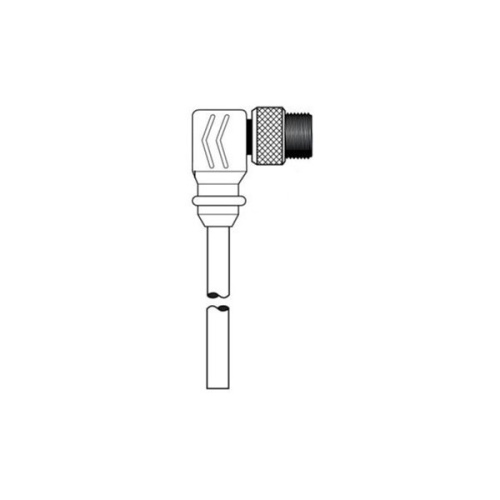

Ericson 75M9E006F Plug (90 Deg) - Yellow, IP68, 4 Amp, 300 Volt
Normally In Stock
Ericson 75M9E006F Micro-Sync Dual Key Single End M 90 5 Pole 6ft PVC - 12" x 9" x 2" (LxWxH)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $250 FROM ERICSON FOR PRODUCT TO SHIP
$59.68
Sale Price
$49.73
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ericson 75M9E006F is a yellow 6ft plug (90 Deg) cable with an IP68, NEMA 6P environmental rating. Ideal for automotive assembly and automated machinery, it features a 22 AWG 300VAC STOW yellow cable and M9 male 90 degrees configuration. With dual keyways and 5 poles, it is suitable for proximity sensors, limit switches, and more. The contact sleeve is made of Zytel ST801 and the over molded body is PVC. It has a load capacity of 4A and 300VAC. The coupling nut is made of machined aluminum, clear anodized, and the wiring code includes various colors.
Specifications
Component
Plug
Receptacle Color
Yellow
Manufacturer
Ericson
Receptacle Voltage
300 Volt
Receptacle Amperage
4 Amp
Receptacle NEMA Type
Type 6P
Receptacle IP Rating
IP 68
Receptacle Max Wire Size
22 AWG
Cable Length
6 Ft
Receptacle Number of Poles
5 Pole
Features
NEMA 6P and IP68 Protection
Made in the USA
Compatible with U.S. and European sensors
High-impact resistant contact carriers
Corrosion resistant gold plated contacts
Secure pin and contact crimp termination
Mechanically keyed
Field installable
Stress and harsh environment resistant
Vibration resistant
Designed for low amperage AC or DC control systems
Wide range of configuration alternatives available including male and female connections, 2 thru 12 pole pin-outs, straight 90° configurations and single or dual keyway
Downloads
Code: 576944
Ericson 75M9E006F Plug (90 Deg) - Yellow, IP68, 4 Amp, 300 Volt
$59.68
Sale Price
$49.73
