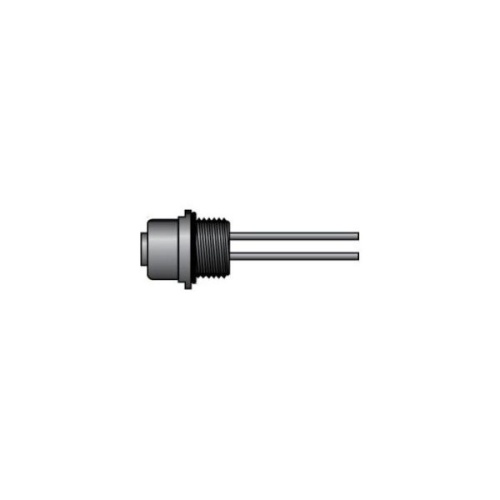

Ericson 75FRK3 Female Receptacle - Yellow, IP68, 5 Amp, 300 Volt
Normally In Stock
Code: 576940
Ericson 75FRK3 Micro-Sync Dual Key Back Panel 5 Pole Female Receptacle - 12" x 9" x 2" (LxWxH)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $150 FROM ERICSON FOR PRODUCT TO SHIP
$49.34
Sale Price
$41.12
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ericson Yellow Micro-Sync Connector (75FRK3) is an IP68 and NEMA 6P rated, 1ft cable ideal for automotive assembly, pick n place robots, and automated machinery. With 18 AWG 300VAC wire and a PVC over molded body, this 5-pole, dual-keyway female receptacle is suitable for proximity sensors, limit switches, and solenoids. The contact material is brass with a gold plated over nickel finish, while the coupling nut is machined aluminum with a clear anodized coating. The wiring code includes color-coded wires for easy installation.
Specifications
Receptacle Amperage
5 Amp
Receptacle Color
Yellow
Component
Receptacle
Manufacturer
Ericson
Cable Length
1 Ft
Receptacle Voltage
300 Volt
Receptacle NEMA Type
Type 6P
Receptacle IP Rating
IP 68
Receptacle Max Wire Size
18 AWG
Receptacle Number of Poles
5 Pole
Features
NEMA 6P and IP68 Protection
Made in the USA
Compatible with U.S. and European sensors
High-impact resistant contact carriers
Corrosion resistant gold plated contacts
Secure pin and contact crimp termination
Mechanically keyed
Field installable
Stress and harsh environment resistant
Vibration resistant
Designed for low amperage AC or DC control systems
Wide range of configuration alternatives available including male and female connections, 2 thru 12 pole pin-outs, straight 90° configurations and single or dual keyway
