Ericson 74MRK2 Male Receptacle - Yellow, IP68, 4 Amp, 300 Volt
Normally In Stock
Code: 576932

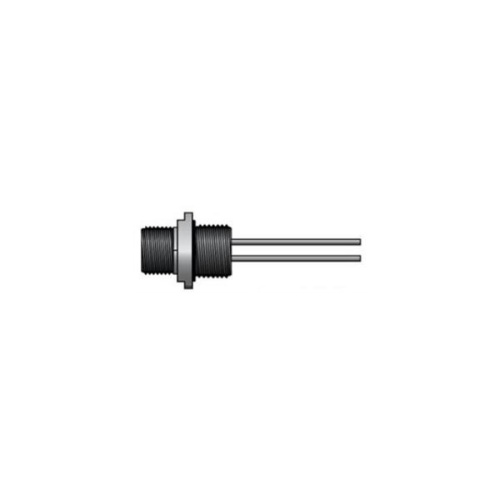

Ericson 74MRK2 Micro-Sync Dual Key 1/2" NPT 4 Pole Male Receptacle - 12" x 9" x 2" (LxWxH)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $150 FROM ERICSON FOR PRODUCT TO SHIP
$32.68
Sale Price
$27.23
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ericson 74MRK2 is a yellow, IP68 and NEMA 6P-rated Micro-Sync connector with a 22 AWG 300VAC cable. With a 1 ft cable length, it features a dual keyway, 4 pole configuration ideal for automotive assembly, material handling equipment, and more. The contact sleeve is made from Zytel ST801 and the coupling nut is machined aluminum with a clear anodized finish. The contact material is brass, gold plated over nickel, and it has a load capacity of 4A at 300VAC. The wiring code is 1 = Red/Black, 2 = Red/White, 3 = Red, 4 = Green. The contact carrier is made from nitrile rubber.
Specifications
Receptacle Color
Yellow
Component
Receptacle
Manufacturer
Ericson
Receptacle Number of Poles
4 Pole
Cable Length
1 Ft
Receptacle Voltage
300 Volt
Receptacle Amperage
4 Amp
Receptacle NEMA Type
Type 6P
Receptacle IP Rating
IP 68
Receptacle Max Wire Size
22 AWG
Features
NEMA 6P and IP68 Protection
Made in the USA
Compatible with U.S. and European sensors
High-impact resistant contact carriers
Corrosion resistant gold plated contacts
Secure pin and contact crimp termination
Mechanically keyed
Field installable
Stress and harsh environment resistant
Vibration resistant
Designed for low amperage AC or DC control systems
Wide range of configuration alternatives available including male and female connections, 2 thru 12 pole pin-outs, straight 90° configurations and single or dual keyway
