Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 576928

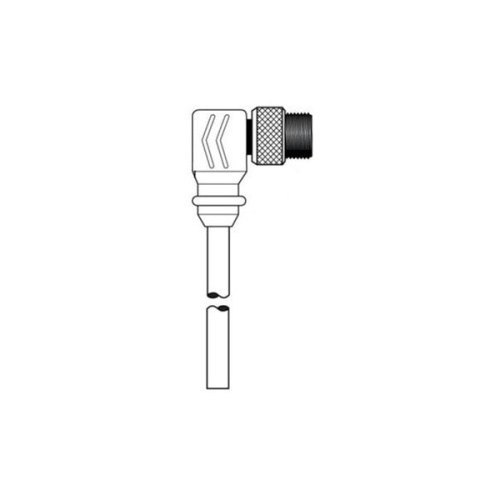

Ericson 74M9E006F Plug (90 Deg) - Yellow, IP68, 4 Amp, 300 Volt
Normally In Stock
Ericson 74M9E006F Micro-Sync Dual Key Single End M 90 4 Pole 6ft PVC - 12" x 9" x 2" (LxWxH)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $250 FROM ERICSON FOR PRODUCT TO SHIP
$44.48
Sale Price
$37.07
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ericson 74M9E006F is a yellow Micro-Sync plug with a 90-degree angle. With an IP68 NEMA 6P environmental rating, this 6ft cable is ideal for automotive assembly, sensors on conveyors, pick n place robots, and packaging and automated machinery. The 22 AWG 300VAC STOW Yellow Cable has a M9 configuration and a 4-pole, dual-keyway design. It uses a Micro connector with a Zytel ST801 contact sleeve and PVC over-molded body. The contact material is brass with gold plating over nickel, and the coupling nut is made of machined aluminum with clear anodization. The wiring code is Red/Black, Red/White, Red, and Green. The Contact carrier material is Nitrile Rubber. Load capacity is 4A at 300VAC.
Specifications
Component
Plug
Receptacle Color
Yellow
Manufacturer
Ericson
Receptacle Number of Poles
4 Pole
Receptacle Voltage
300 Volt
Receptacle Amperage
4 Amp
Receptacle NEMA Type
Type 6P
Receptacle IP Rating
IP 68
Receptacle Max Wire Size
22 AWG
Cable Length
6 Ft
Features
NEMA 6P and IP68 Protection
Made in the USA
Compatible with U.S. and European sensors
High-impact resistant contact carriers
Corrosion resistant gold plated contacts
Secure pin and contact crimp termination
Mechanically keyed
Field installable
Stress and harsh environment resistant
Vibration resistant
Designed for low amperage AC or DC control systems
Wide range of configuration alternatives available including male and female connections, 2 thru 12 pole pin-outs, straight 90° configurations and single or dual keyway
