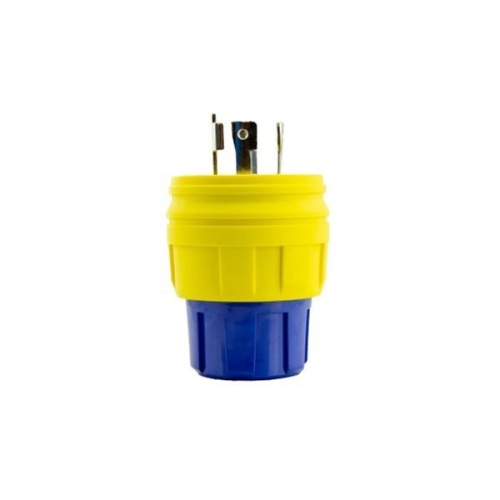

Ericson 2524-PW6P Extreme Grade, Watertight Plug - Yellow, IP69K, 30 Amp, 480 Volt
Normally In Stock
Code: 576150

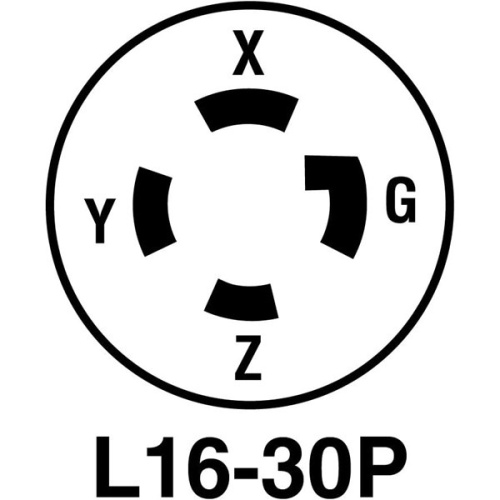

Ericson 2524-PW6P Plug NEMA L16-30, Perma-Tite Extreme Grade, Ip69k Watertight Yellow Wiring Device, Locking 30 Amp 480V 3PH 3P/4w, Size = Lg, 28w76 - 12" x 9" x 2" (LxWxH)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $150 FROM ERICSON FOR PRODUCT TO SHIP
$67.28
Sale Price
$56.07
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ericson 2524-PW6P Yellow Plug is an Extreme Grade watertight device with a NEMA L16-30 configuration and a voltage rating of 480V. It is ideal for environments requiring a watertight seal to prevent water ingress, making it suitable for various applications like construction sites, entertainment venues, and food processing plants. The plug is CSA certified and NSF/ANSI/3-A 14159-1 compliant. Each carton contains 5 plugs, and the case quantity is 45.
Specifications
Receptacle Amperage
30 Amp
Component
Plug
Receptacle Voltage
480 Volt
Receptacle Color
Yellow
Receptacle IP Rating
IP 69K
Manufacturer
Ericson
Receptacle Blade Style
Locking
Receptacle Number of Poles
3 Pole
Receptacle Number of Wires
4 Wire
Receptacle Phase
3
Features
UL & CSA Approvals
NEMA 4, 4X, 6, 6P and IP69K
Exclusive 8 Point Tongue & Groove Sealing System
External Husk Molded from PBT for high resistance chemicals, moisture, and petroleum absorption
Husk Groves for secure non-slipping gloved grip
Color Coded Sealing Bushings are designed with various sizes to ensure secure dust and water-tight seal
Nickel Plated Device Blades and Contacts offer superior corrosion resistance and service life Nonmetallic Cord Grip Nut and Grommet System offer a wide range of cable sizes under one catalog number 82005
Removable & Replaceable self-retained cap standard for female connector and optional for plug
