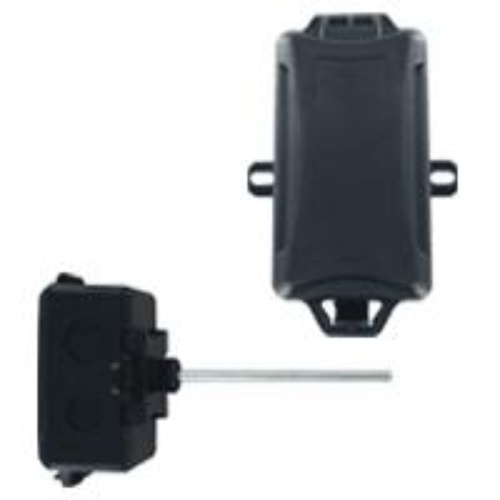

Dwyer I2-23042 General Purpose Immersion Temperature Sensor
Normally In Stock
Code: 575507
Dwyer I2-23042 - Immersion temperature sensor, 4" insertion, NI 1000 sensor, plastic junction box.
Condition: New
Usually ships Same Day or Next Day$131.74
Sale Price
$109.78
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer I2-23042 is a General Purpose Immersion Temperature Sensor designed for a temperature range of -32 to 240°F (-35.5 to 115.5 °C). It has excellent accuracy specifications: ±0.6% @ 32°F (0°C) for Platinum RTD, ±0.5°F @ 32°F (0°C) for Nickel RTD, ±0.1% @ 32°F (0°C) for Balco RTD, and ±0.36°F from 32 to 158°F (0 to 70°C) for Thermistors. This sensor features a 1/2" threaded connection for easy installation and is made of 304 SS material. The probe diameter is 1/4" (6.3 mm) and it comes with an 8" cable.
Specifications
Component
Temperature Sensor
(Instrument-Sensor) Temperature Range
-32 - 240°F/-35.5 - 115.5°C
Manufacturer
Dwyer Instruments
Features
The Series I2-2 General Purpose Immersion Temperature Sensor is ideal for monitoring hot and chilled water lines throughout a building or mechanical room
The plastic housing is in the shape of a standard junction box with multiple knockouts for easy conduit access
The locking cover prevents unauthorized occupants from tampering with the temperature sensor
The Sensor I2-2 can be ordered with a choice of 11 output options that allow it to communicate to any standard building control system.
