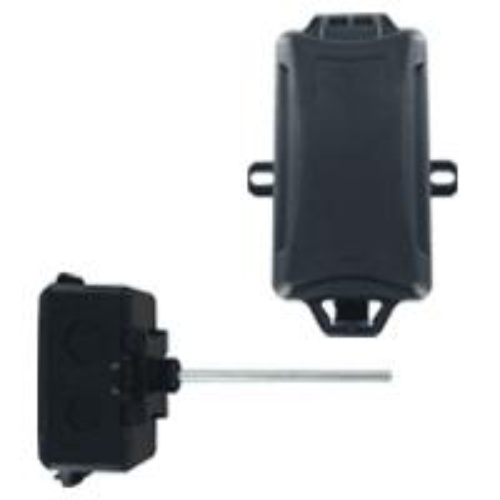

Dwyer I2-22062 General Purpose Immersion Temperature Sensor
Normally In Stock
Dwyer I2-22062 - Immersion temperature sensor, 6" insertion, Pt 1000 sensor, plastic junction box.
Condition: New
Usually ships Same Day or Next Day$131.74
Sale Price
$109.78
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer I2-22062 is a General Purpose Immersion Temperature Sensor with a temperature range of -32 to 240°F (-35.5 to 115.5 °C). It offers high accuracy for different types of sensors: Platinum RTD: ±0.6% @ 32°F (0°C), Nickel RTD: ±0.5°F @ 32°F (0°C), Balco RTD: ±0.1% @ 32°F (0°C), and Thermistors: ±0.36°F from 32 to 158°F (0 to 70°C). It features a 1/2" Threaded Connection for IW2 Series Thermowell mounting, made with 304 SS material. The probe diameter is 1/4" (6.3 mm) and comes with an 8" cable length.
Specifications
Component
Temperature Sensor
(Instrument-Sensor) Temperature Range
-32 - 240°F/-35.5 - 115.5°C
Manufacturer
Dwyer Instruments
Features
The Series I2-2 General Purpose Immersion Temperature Sensor is ideal for monitoring hot and chilled water lines throughout a building or mechanical room
The plastic housing is in the shape of a standard junction box with multiple knockouts for easy conduit access
The locking cover prevents unauthorized occupants from tampering with the temperature sensor
The Sensor I2-2 can be ordered with a choice of 11 output options that allow it to communicate to any standard building control system.
