Code: 575405

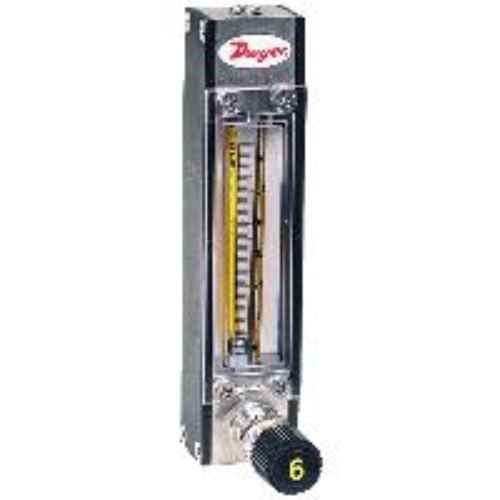

Dwyer VA12424 Variable Area Glass Flowmeter
Normally In Stock
Dwyer VA12424 - Variable area glass flowmeter, SS float, max. flow rate 4.51 SCFH (2129 ml/min) air, 0.930 GPH (58.7 ml/min) water.
Condition: New
Usually ships Same Day or Next Day$803.90
Sale Price
$669.92
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer VA12424 is a vertical mounting variable area glass flowmeter designed for use with compatible gases or liquids. It has an accuracy of ±2% FS at 70°F and 14.7 psia, with a temperature range of 250°F. The wetted materials include borosilicate glass flowtube, glass or SS floats, and PTFE float stops. It has a pressure limit of 200 psig and a turn-down ratio of 10:1. The flowmeter features a 6-turn needle valve and a leak rate of 1 x 10-7 sccs of helium.
Specifications
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
Component
Flow Meter
(Instrument-Sensor) Temperature Range
250°F/121°C
(Instrument-Sensor) Type
Variable Area Glass
(Instrument-Sensor) Temperature Range
-15 - 150°F/-26 - 65°C
(Instrument-Sensor) Measurement Accuracy
2.0%
Manufacturer
Dwyer Instruments
Features
Permanently fused ceramic scale with vertical locator line reduces parallax and eye fatigue saving time
Long operating life with thick polycarbonate front shield that protects tube from breakage and serves as a magnifying lens to enhance reading resolution
Standard 6-turn needle valve for flow rate control eliminating the need for a separate valve reducing cost
No additional installation required with optional acrylic tripod base which allows for self-standing bench mounting
High precision metering valves with non-rising stems are available for high sensitivity control and resolution for very low flow rate
