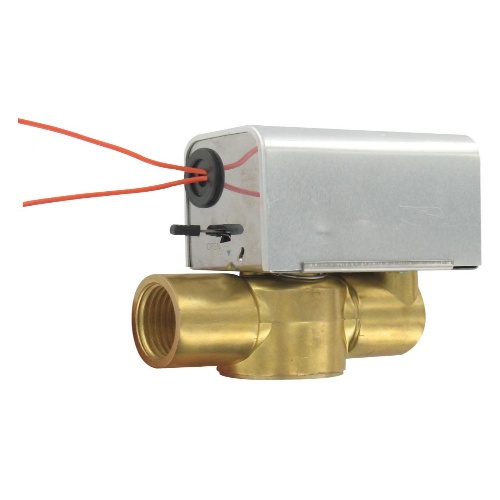

Dwyer ZV1023-NO Two-Way Zone Valve
Normally In Stock
Code: 574877
Dwyer ZV1023-NO - Two-way zone valve, 1/2" NPT, 230 VAC.
Condition: New
Usually ships Same Day or Next Day$89.83
Sale Price
$74.86
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer ZV1023-NO is a two-way zone valve suitable for ambient temperatures between 32 to 104°F (0 to 40°C) and process temperatures ranging from 0 to 201°F (0 to 94°C). It can be powered by 120 VAC or 24 VAC, ±10%, 50/60 Hz, with an optional 220 VAC. This valve has a general-purpose enclosure rating and electrical connections measuring 22 AWG, 5" (127 mm) long. It is compatible with various fluids and has a power consumption of 6.5 W. Made of brass, stainless steel, and NBR, it can withstand a maximum pressure of 300 psi (20.7 bar) and has a close-off pressure ranging from 14.5 psi (1 bar) to 22 psi (1.5 bar). The process connection is a female NPT, with the option of BSP or sweat connections. The valve's body is 2-way and normally closed, with a quick-opening flow characteristic.
Specifications
(Instrument-Sensor) Supply Voltage
24 VAC
(Instrument-Sensor) Application
Liquid
Component
Valve
(Instrument-Sensor) Supply Voltage
120 VAC
(Instrument-Sensor) Temperature Range
Ambient: 32 - 104°F/0 - 40°C
Sub Component
Two-Way Zone Valve
(Instrument-Sensor) Temperature Range
Process: 0 - 201°F/0 - 94°C
Manufacturer
Dwyer Instruments
Features
ZV1 Series Zone Valves are ideal for flow control in hot and cold water HVAC systems
Zone valves are typically used in conjunction with a thermostat to control room temperature
The ZV1 is electrically driven to open and spring to close
Units are available in 1/2˝, 3/4˝, and 1˝ sizes with 24 or 120 VAC power supply
Easy to install these units are direct replacements for competitor units
Manual override lever is easily accessible externally
Consult factory for 220 VAC power supply, optional auxiliary switches, and BSP or sweat connections.
