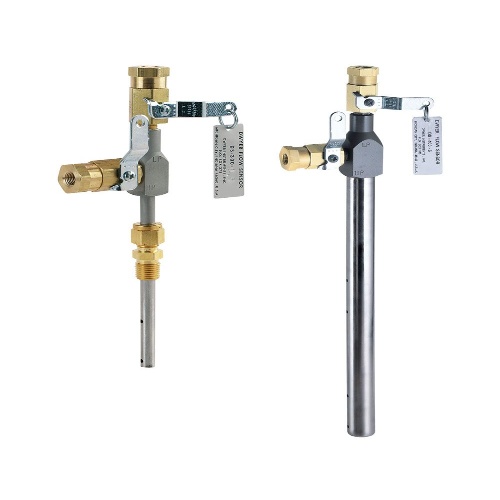

Dwyer DS-300-8 In-Line Flow Sensor
Normally In Stock
Code: 574805
Dwyer DS-300-8 - Flow sensor, 8" pipe size.
Condition: New
Usually ships Same Day or Next Day$770.33
Sale Price
$641.94
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DS-300-8 is an in-line flow sensor suitable for use with compatible gases or liquids. It has a maximum temperature rating of 200°F (93.3°C) and a pressure limit of 200 psig (13.78 bar) at the same temperature. The sensor tube is made of 304 SS and the compression fitting is brass. The DS-300 version includes a 1/4" male NPT compression fitting, while the DS-400 version includes a 3/4" male NPT compression fitting. The connection options include a 1/8" female NPT with optional 1/8" female NPT x 1/4" SAE 45 flared adaptor for the DS-300, and a 1/8" female NPT with 1/8" female NPT x 1/4" SAE 45 flared adapters for the DS-400. The available pipe sizes range from 1 to 10" (2.5 to 25.4 cm) for the DS-300 and 6 to 24" (15.2 to 61 cm) for the DS-400.
Specifications
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
Component
Flow Sensor
(Instrument-Sensor) Type
In-Line Flow Sensor
(Instrument-Sensor) Temperature Range
200°F/93.3°C
Manufacturer
Dwyer Instruments
Features
Multiple sensing point measurement and built-in averaging capability eliminates the need for “traversing” the flowing stream with single point velocity pressure measurement saving time
Extremely reliable, proven technology, Pitot tubes, have been used in flow measurement for years
All models include convenient and quick-acting quarter-turn ball valves to isolate the sensor for zeroing with 1/8˝ female NPT valve assembly process connections.
Furnished with instrument shut-off valves on both pressure connections with 1/8˝ female NPT connections rated at 200 psig (13.7 bar) and 200°F (93.3°C)
Where valves are not required, they can be omitted at reduced cost
The Series DS-400 Averaging Flow Sensors are quality constructed from extra strong 3/4˝ dia. stainless steel to resist increased forces encountered at higher flow rates with both air and water
Economical flow indication when used with appropriate differential pressure gage
Rugged construction yields, non-clogging, stable design
